(55.020.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, SPEED SENSOR

Запчасти Case IH OPTUM 270 CVT (55.020.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

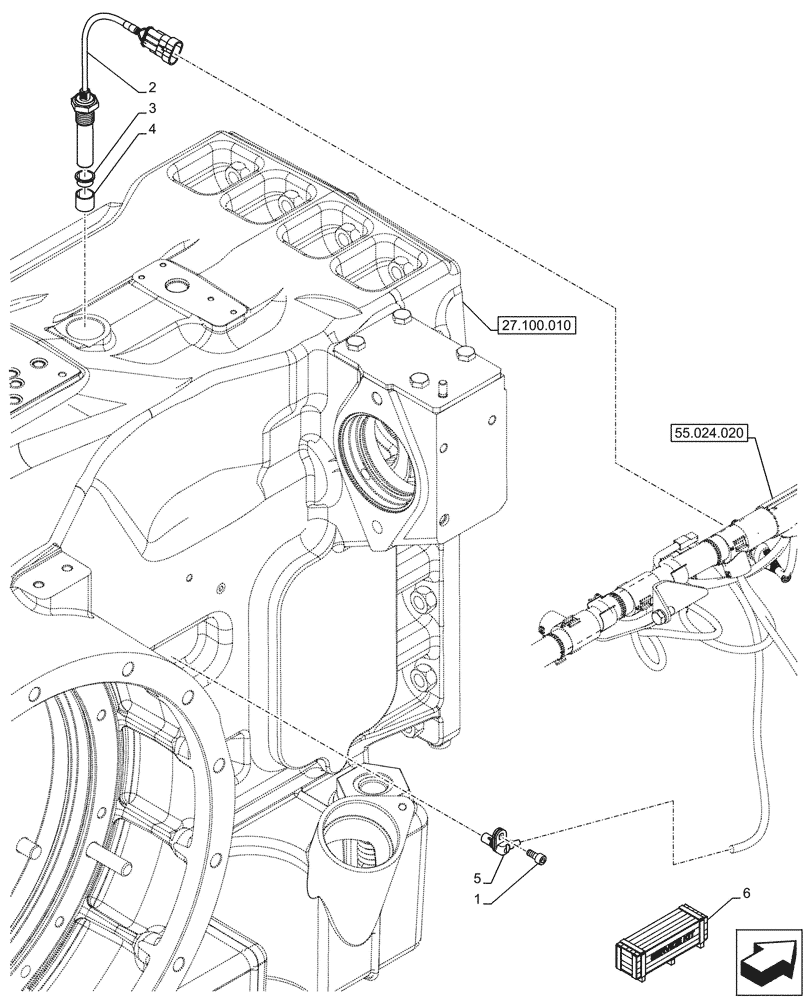

Схема запчастей Case IH OPTUM 270 CVT - (55.020.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
55.024.020
6
3
4
1
2
5
27.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47850761

HEX SOC SCREW,M6 x 12mm, Full Thd, Cl 8.8

1шт.

2

47370195

SENSOR

Speed

1шт.

3

47915449

GROMMET,32mm ID x 11mm Thk

1шт.

4

47915450

RUBBER SEAL,32mm ID x 38mm OD x 30mm Thk

1шт.

5

84243033

SENSOR

Wheel Speed

1шт.

6

47912889

GEARBOX

Transmission ASSY, Incl 1 - 5

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
