Запчасти Case IH OPTUM 270 CVT (55.019.010) - VAR - 391138, 758022, 758870, 759053 - HYDROSTATIC TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

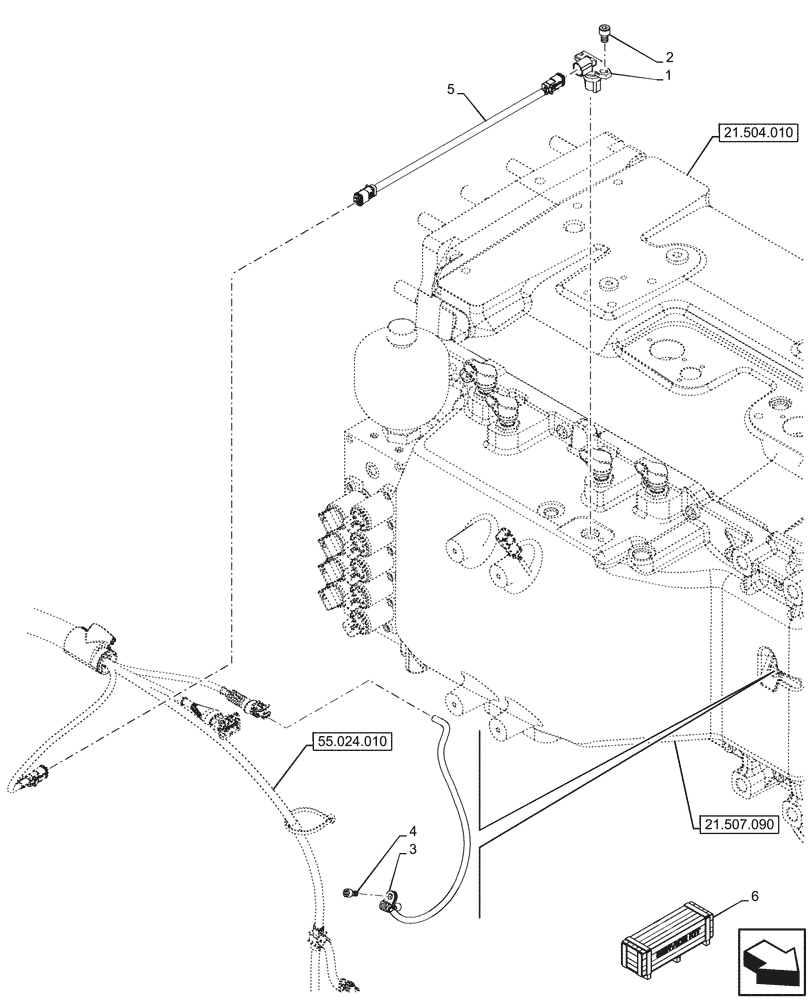

Схема запчастей Case IH OPTUM 270 CVT - (55.019.010) - VAR - 391138, 758022, 758870, 759053 - HYDROSTATIC TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
21.507.090
4
1
2
6
5
3
55.024.010
21.504.010

Артикул

Название

Примечание

Количество

1

87673029

SOCKET/RECEPTACLE,17.15mm OD x 48.4mm L

1шт.

2

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

3

84243033

SENSOR

Wheel Speed

1шт.

4

47850761

HEX SOC SCREW,M6 x 12mm, Full Thd, Cl 8.8

1шт.

5

87677187

WIRE HARNESS

Hydrostat

1шт.

6

47912889

GEARBOX

Transmission ASSY, Incl 1 - 5

1шт.

See all the Included Components by searching for the PN 47912889

1шт.

Выбрано товаров: 7
