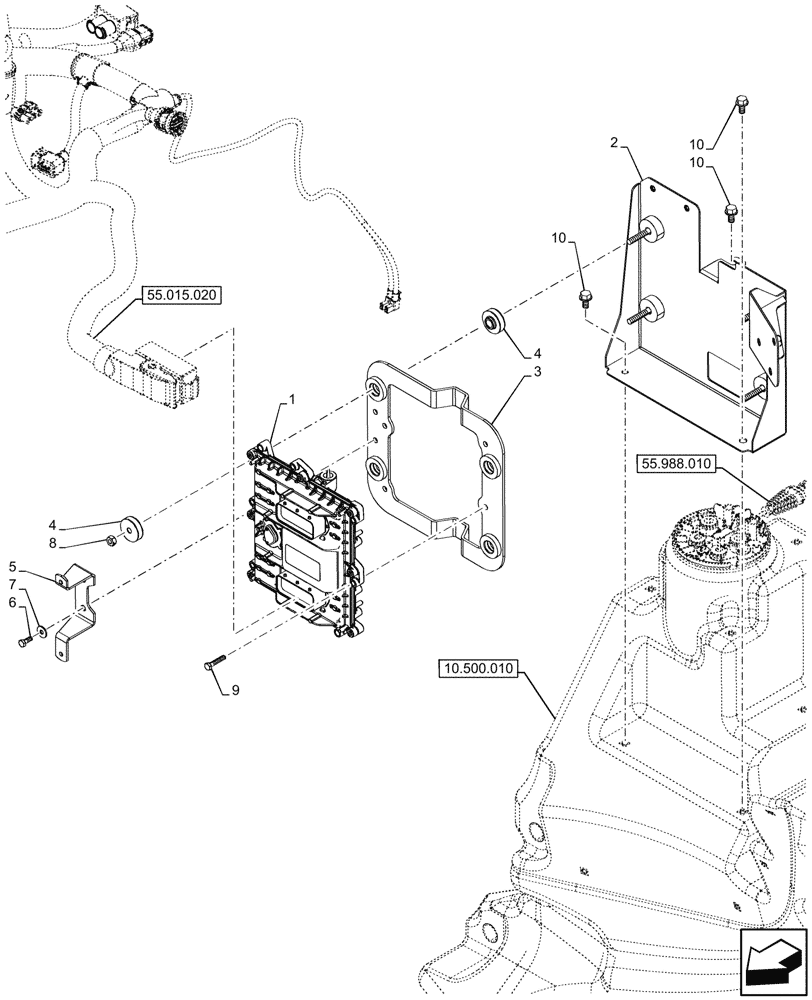

Запчасти Case IH OPTUM 270 CVT (55.015.040) - VAR - 391130, 758000, 759041 - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

84499733

ECU

12/24V

1шт.

2

47715688

BRACKET

1шт.

3

47377342

BASE PLATE

1шт.

4

47381256

RUBBER BLOCK,8.5mm ID x 36mm OD x 10mm Thk

8шт.

5

47584450

BRACKET

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

9

10902921

SCREW,Hex, M6 x 32mm, Cl 8.8

4шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.
