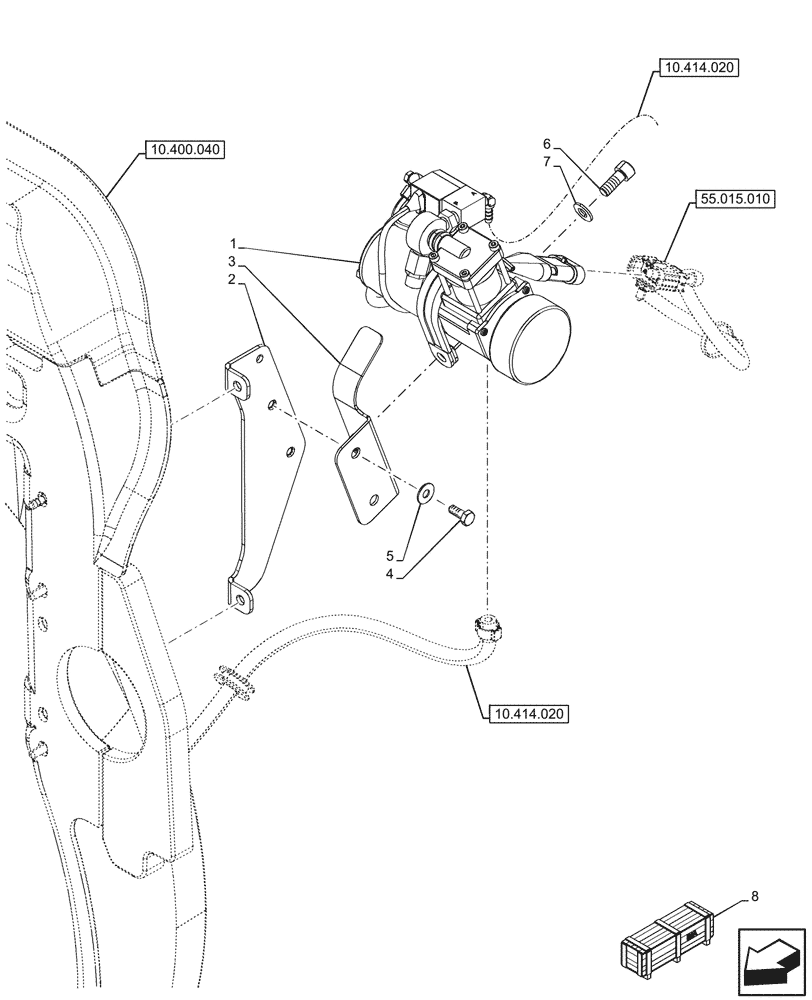

Запчасти Case IH OPTUM 270 CVT (55.012.020) - VAR - 758000, 759041 - ENGINE, REVERSIBLE FAN, AIR COMPRESSOR (55) - ELECTRICAL SYSTEMS

1

84592808

AIR COMPRESSOR,12V

Reversible Fan

1шт.

2

47583416

BRACKET

1шт.

3

47583526

BRACKET

1шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

5

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

2шт.

6

14306331

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

719241054

DIA KIT, TRACTOR

Reversible Fan CCM HD, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
