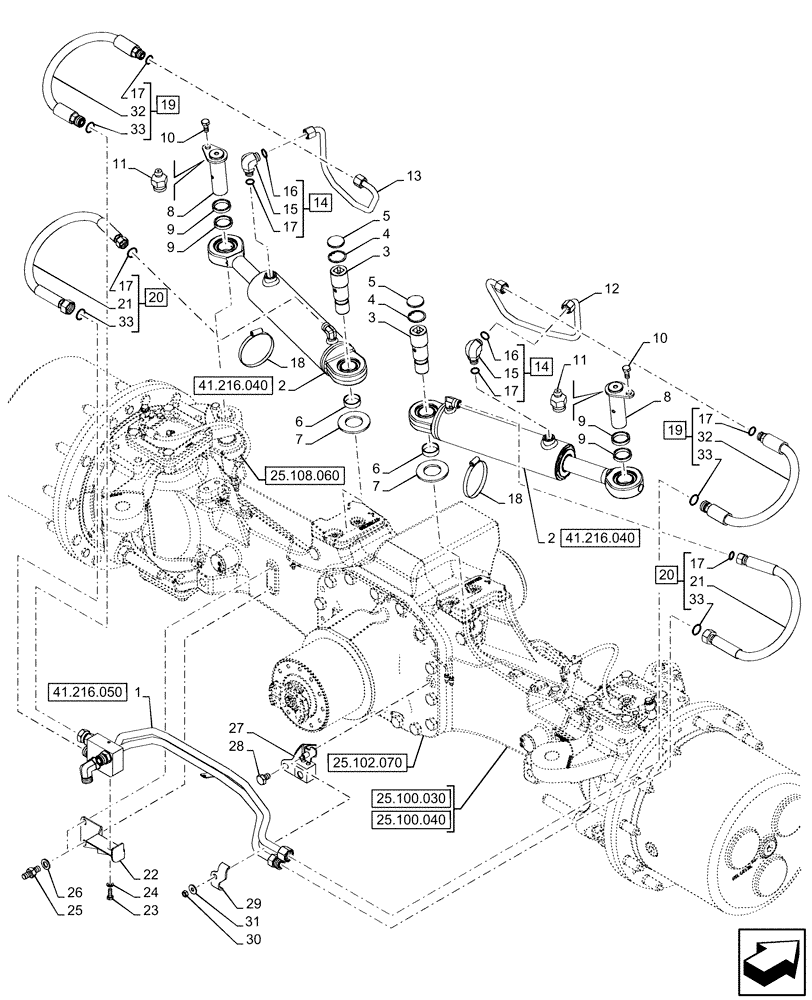

Запчасти Case IH OPTUM 270 CVT (41.216.060) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER HYD. LINE (41) - STEERING

1

47783459

PIPE

ASSY

1шт.

2

47782996

STEERING CYLINDER,36mm Rod, 246mm Stroke

ASSY

2шт.

3

47384884

PIN,39.73mm OD x 123.2mm L

2шт.

4

11059976

SNAP RING,M40, Int

2шт.

5

84315411

COVER

2шт.

6

87554181

SPACER,35.5mm ID x 39.5mm OD x 12.5mm L

2шт.

7

47359976

WASHER,41mm ID x 76mm OD x 4.76mm Thk

2шт.

8

87554183

PIN,34.99mm OD x 115mm L

2шт.

9

87554192

SPACER,35.5mm ID x 43mm OD x 8mm L

4шт.

10

15970734

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

13407211

LUBE NIPPLE,M10 x 1

2шт.

12

47736591

PIPE

1шт.

13

47736593

PIPE

1шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 15 (Qty 1), 16 (Qty 1), 17 (Qty 1)

2шт.

15

NSS

NOT SOLD SEPARAT

Elbow, incl in 14

2шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

18

13001190

HOSE CLAMP,80mm - 100mm, Worm Gear

2шт.

19

47789569

HOSE,12.5mm ID x 480mm L

ASSY, 12.5mm ID x 480mm, Steering from Cylinder, Incl 17 (Qty 1), 32 (Qty 1), 33 (Qty 1)

2шт.

20

47736618

HOSE,12.5mm ID x 515mm L

ASSY, 12.5mm ID x 515mm, Steering from Cylinder, Incl 17 (Qty 1), 33 (Qty 1), 35 (Qty 1)

2шт.

21

NSS

NOT SOLD SEPARAT

Hose, Incl in 20

2шт.

22

47723921

BRACKET

1шт.

23

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

47783460

STUD,Hex, M10 x 38mm L

2шт.

26

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

47874388

BRACKET

1шт.

28

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

29

47725033

BRACKET

1шт.

30

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

31

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

32

NSS

NOT SOLD SEPARAT

Hose, Incl in 19

2шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
