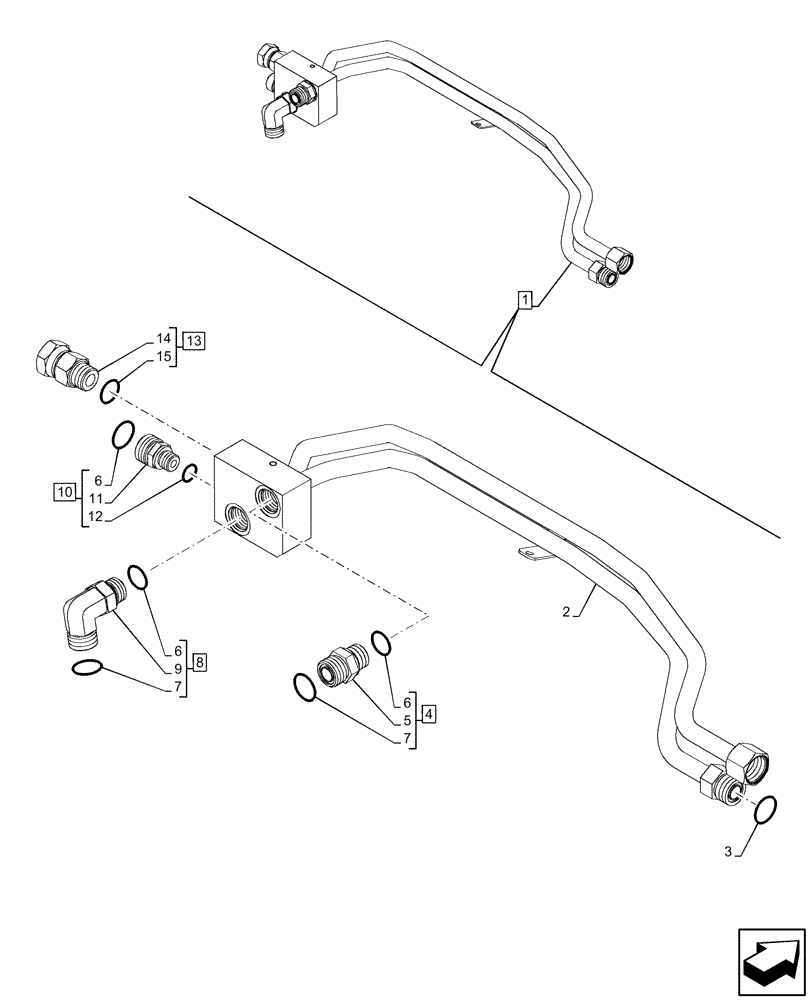

Запчасти Case IH OPTUM 270 CVT (41.216.050) - VAR - 758795, 758796 - FRONT AXLE, STEERING CYLINDER HYD. LINE, LINE, COMPONENTS (41) - STEERING

1

47783459

PIPE

ASSY, Steering with Block and Fittings, Incl 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe Assy, Incl in 1

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 5, 6 (Qty 1), 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

ASSY, Incl 6 (Qty 1), 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

47625819

FITTING,M22 x 1.5 x 52mm L

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.
