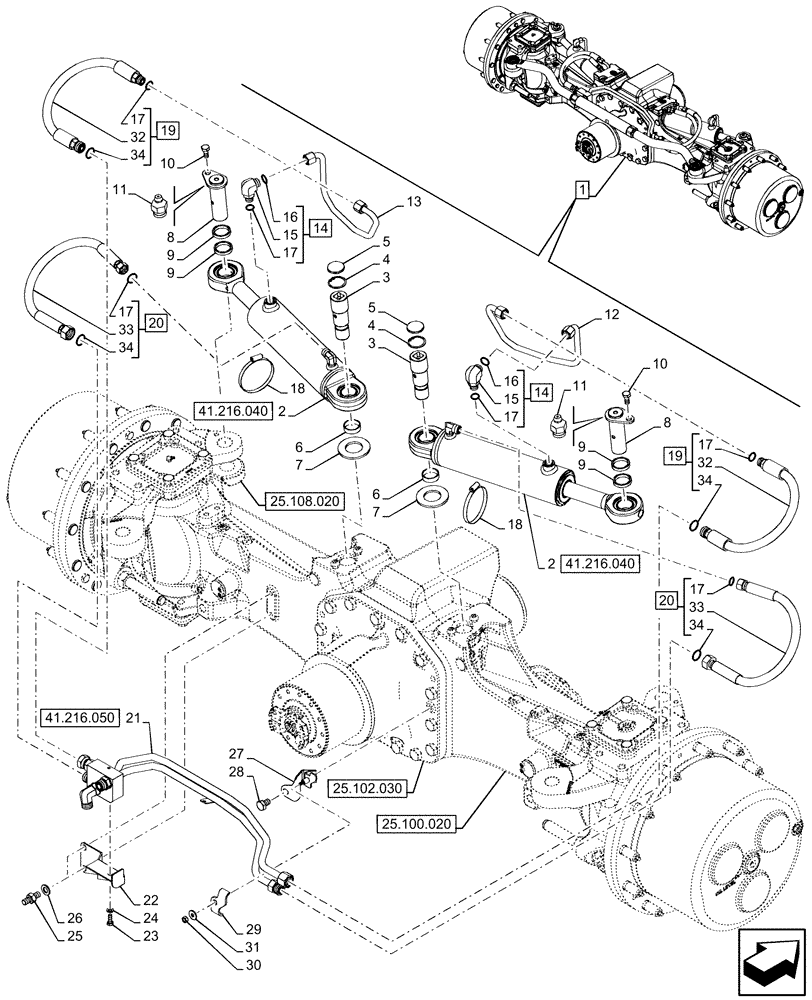

Запчасти Case IH OPTUM 270 CVT (41.216.030) - VAR - 758795 - FRONT AXLE, STEERING CYLINDER HYD. LINE (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
47496687
FRONT AXLE
ASSY, Incl 2 - 31
1шт.
See also Figure 25.100.020, 25.102.030, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 41.106.010, 55.047.020
1шт.
2
47782996
STEERING CYLINDER,36mm Rod, 246mm Stroke
ASSY
2шт.
3
47384884
PIN,39.73mm OD x 123.2mm L
2шт.
4
11059976
SNAP RING,M40, Int
2шт.
5
84315411
COVER
2шт.
6
87554181
SPACER,35.5mm ID x 39.5mm OD x 12.5mm L
2шт.
7
47359976
WASHER,41mm ID x 76mm OD x 4.76mm Thk
2шт.
8
87554183
PIN,34.99mm OD x 115mm L
2шт.
9
87554192
SPACER,35.5mm ID x 43mm OD x 8mm L
4шт.
10
15970734
BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd
2шт.
12
47736591
PIPE
RH Cylinder Steering
1шт.
13
47736593
PIPE
LH Cylinder Steering
1шт.
14
86579691
90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB
ASSY, Incl 15 (Qty 1), 16 (Qty 1), 17 (Qty 1)
2шт.
15
NSS
NOT SOLD SEPARAT
Elbow, Incl in 14
2шт.
18
13001190
HOSE CLAMP,80mm - 100mm, Worm Gear
2шт.
19
47789569
HOSE,12.5mm ID x 480mm L
ASSY, 12.5mm ID x 480mm, Steering from Cylinder, Incl 17 (Qty 1), 32 (Qty 1), 34 (Qty 1)
2шт.
20
47736618
HOSE,12.5mm ID x 515mm L
ASSY, 12.5mm ID x 515mm, Steering from Cylinder, Incl 17 (Qty 1), 33 (Qty 1), 34 (Qty 1)
2шт.
21
47783459
PIPE
ASSY
1шт.
22
47723921
BRACKET
1шт.
23
86508568
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
1шт.
24
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
25
47783460
STUD,Hex, M10 x 38mm L
2шт.
26
86624176
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
27
47874387
BRACKET
1шт.
28
15970324
SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd
1шт.
29
47725033
BRACKET
1шт.
30
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
1шт.
31
86624182
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
1шт.
32
NSS
NOT SOLD SEPARAT
Hose, Incl in 19
2шт.
33
NSS
NOT SOLD SEPARAT
Hose, Incl in 20
2шт.
