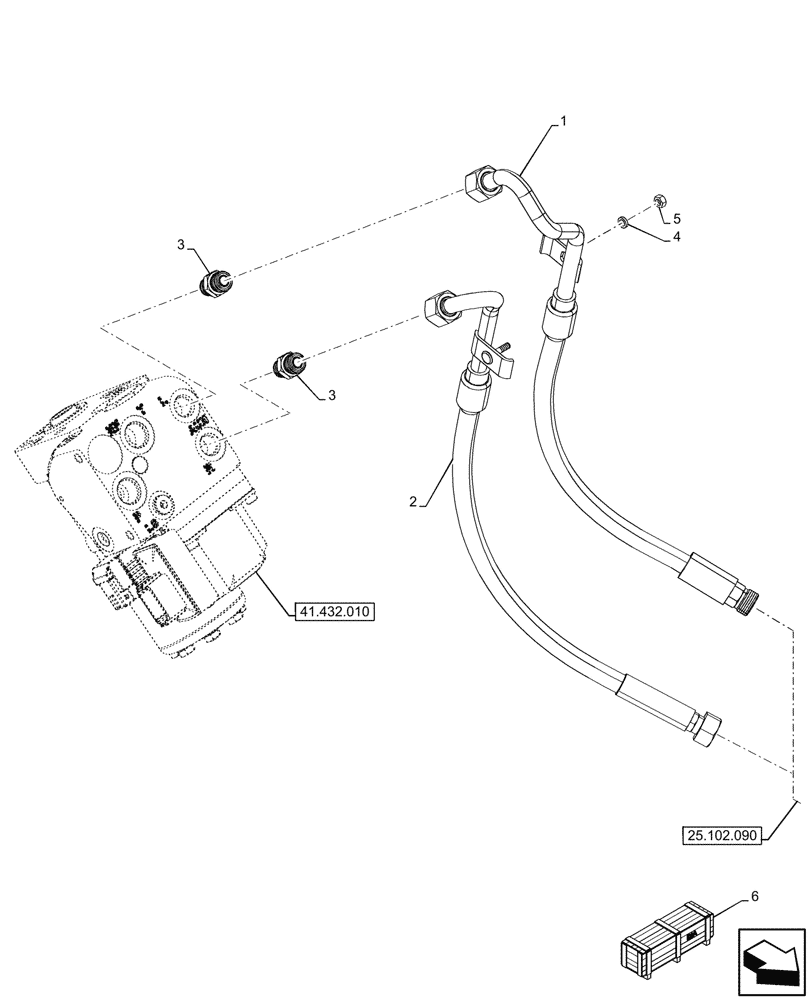

Запчасти Case IH OPTUM 270 CVT (41.216.020) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - HYDRAULIC STEERING, STEERING CYLINDER, LINE (41) - STEERING

1

47732908

TUBE

from Steering Valve to Steering Cylinder, Supply Line

1шт.

2

47732910

TUBE

from Steering Valve to Steering Cylinder, Supply Line

1шт.

3

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

2шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

6

710070434

DIA KIT, TRACTOR

Autoguidance Ready, Incl 1 - 5

1шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
