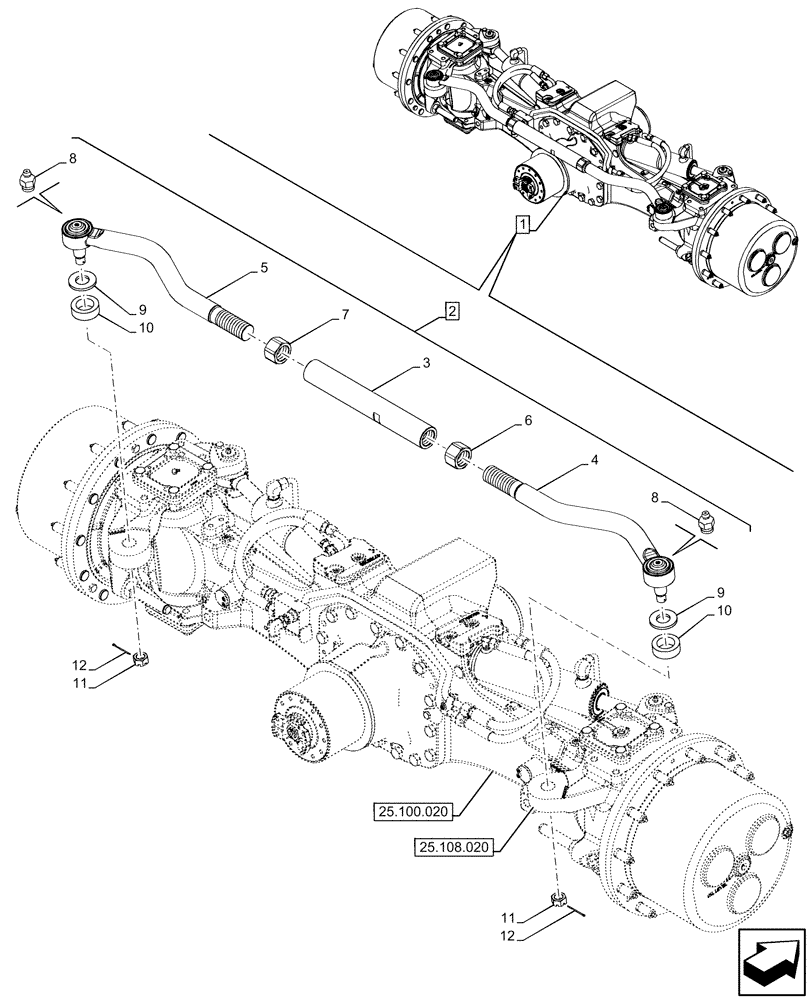

Запчасти Case IH OPTUM 270 CVT (41.106.010) - VAR - 758795 - FRONT AXLE, STEERING TIE-ROD (41) - STEERING

1

47496687

FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Figure 25.100.020, 25.102.030, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 41.216.030, 55.047.020

1шт.

2

47552790

TIE-ROD,M22 x 1.5 x 1435mm L

ASSY, Incl 3 - 12

1шт.

3

NSS

NOT SOLD SEPARAT

Tie Rod, Incl in 2

1шт.

4

47461985

TIE-ROD,M42 x 1.5, RH, Cl 4.75

RH

1шт.

5

47461986

TIE-ROD,M42 x 1.5, LH, Cl 4.75

LH

1шт.

6

47461988

JAM NUT,M42 x 1.5

RH, Class 475

1шт.

7

47461987

JAM NUT,M42 x 1.5

LH, Class 475

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

47577021

WASHER

2шт.

10

47577020

COVER

2шт.

11

84588426

NUT,M22 x 1.5

M22 x 1.5

2шт.

12

80708

COTTER PIN,1/8" x 1 1/2"

2шт.
