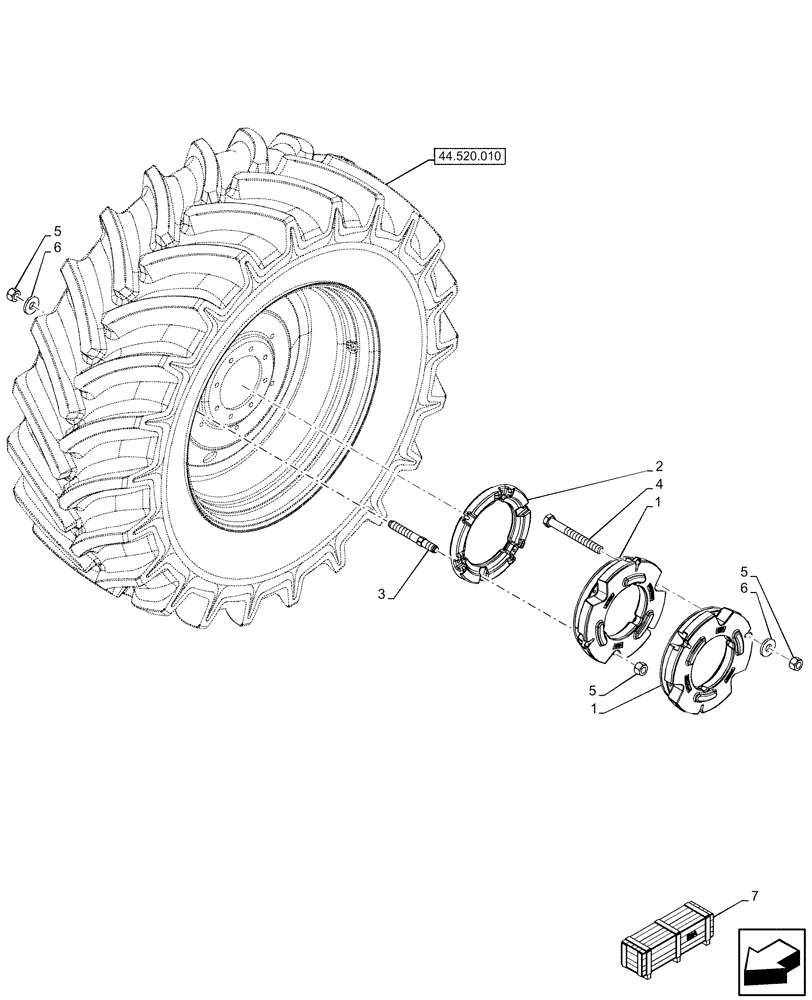

Запчасти Case IH OPTUM 270 CVT (39.140.080) - VAR - 758194 - REAR, WHEEL, BALLAST 1182 KG (39) - FRAMES AND BALLASTING

1

87713987

WHEEL WEIGHT,250Kg

DARK GREY 250 KG

4шт.

2

87603738

WEIGHT

91 KG

2шт.

3

87688991

STUD,M16 x 1.5

M16 x 1.5

12шт.

4

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

6шт.

5

10790524

NUT,M16 x 1.5

24шт.

6

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

24шт.

7

731032014

DIA KIT, TRACTOR

Rear Wheel Ballast 1180kg (4 x 250kg / 2 x 91kg)

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
