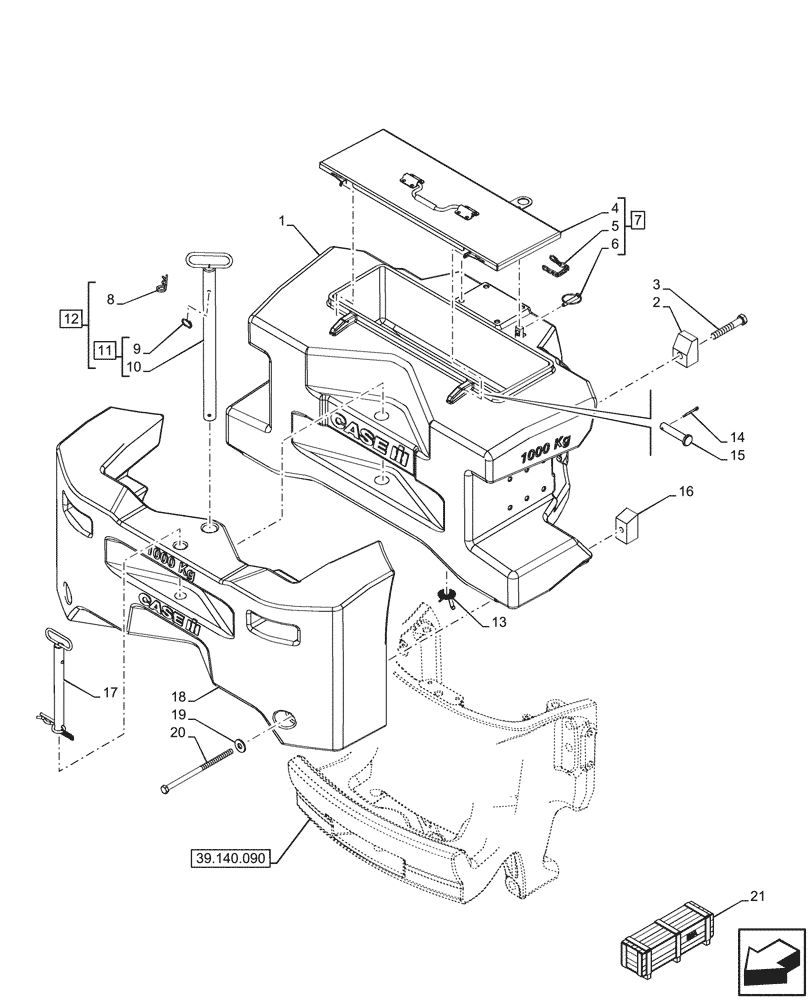

Запчасти Case IH OPTUM 270 CVT (39.140.021) - VAR - 758776 - FRONT, BALLAST (1000 KG) (39) - FRAMES AND BALLASTING

1

47927145

WEIGHT,1000 KG

1000 KG

1шт.

2

87376911

CLAMP,0.932 Kg

2шт.

3

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 7

1шт.

5

47788368

CHAIN

1шт.

6

82013836

ROLL PIN,6mm OD

1шт.

7

47911333

COVER ASSY

ASSY, Incl 4 - 6

1шт.

8

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

9

44901192

SNAP RING,25mm ID

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 11

1шт.

11

47729345

PIN,31mm OD x 531.5mm L

ASSY, Incl 9, 10

1шт.

12

47777881

PIN

ASSY, Incl 8 - 11

1шт.

13

82021866

GRILLE

1шт.

14

86639114

COTTER PIN,M1.6 x 10

2шт.

15

376876

CLEVIS PIN,6mm OD x 30mm L

2шт.

16

84130202

CLAMP,M16 x 2

2шт.

17

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

18

47734791

WEIGHT,1000 KG

1000 KG

1шт.

19

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

20

86639034

BOLT,Hex, M16 x 320mm, Cl 10.9, Full Thd

2шт.

21

731028024

DIA KIT, TRACTOR

Ballast, 2000kg Weight, Incl 1 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
