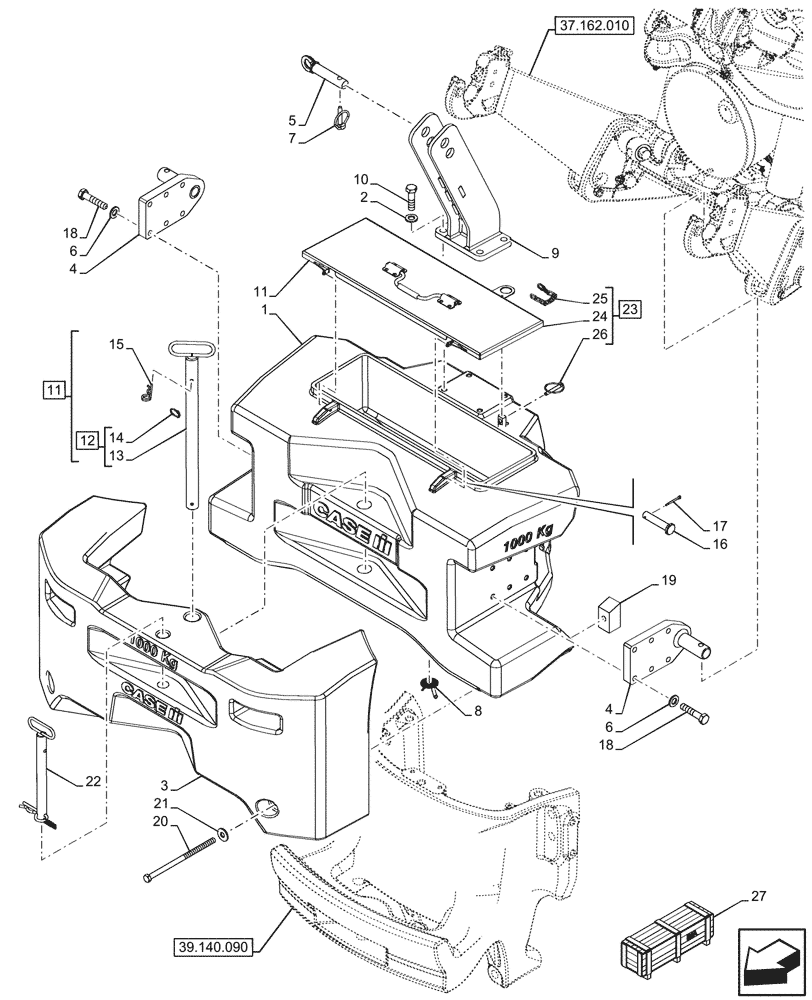

Запчасти Case IH OPTUM 270 CVT (39.140.020) - VAR - 758778 - FRONT, BALLAST (39) - FRAMES AND BALLASTING

1

47927145

WEIGHT,1000 KG

1000 KG

1шт.

2

11200271

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

4шт.

3

47734791

WEIGHT,1000 KG

1000 KG

1шт.

4

47696740

CLEVIS PIN

2шт.

5

822483

PIN,25.5mm OD x 137mm L

1шт.

6

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

12шт.

7

5166585

LOCK PIN,11mm OD

1шт.

8

82021866

GRILLE

1шт.

9

47908768

SUPPORT

1шт.

10

47927491

BOLT,Hex, M16 x 2 x 55mm

4шт.

11

47777881

PIN

ASSY, Incl 12 - 15

1шт.

12

47729345

PIN,31mm OD x 531.5mm L

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Incl in 12

1шт.

14

44901192

SNAP RING,25mm ID

1шт.

15

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

16

376876

CLEVIS PIN,6mm OD x 30mm L

2шт.

17

86639114

COTTER PIN,M1.6 x 10

2шт.

18

15215831

BOLT,Hex, M12 x 60, 10.9, Full Thd

12шт.

19

84130202

CLAMP,M16 x 2

2шт.

20

86639034

BOLT,Hex, M16 x 320mm, Cl 10.9, Full Thd

2шт.

21

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

22

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

23

47911333

COVER ASSY

ASSY, Incl 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Cover, Incl in 23

1шт.

25

47788368

CHAIN

1шт.

26

82013836

ROLL PIN,6mm OD

1шт.

27

731028024

DIA KIT, TRACTOR

Ballast, 2000kg Weight, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
