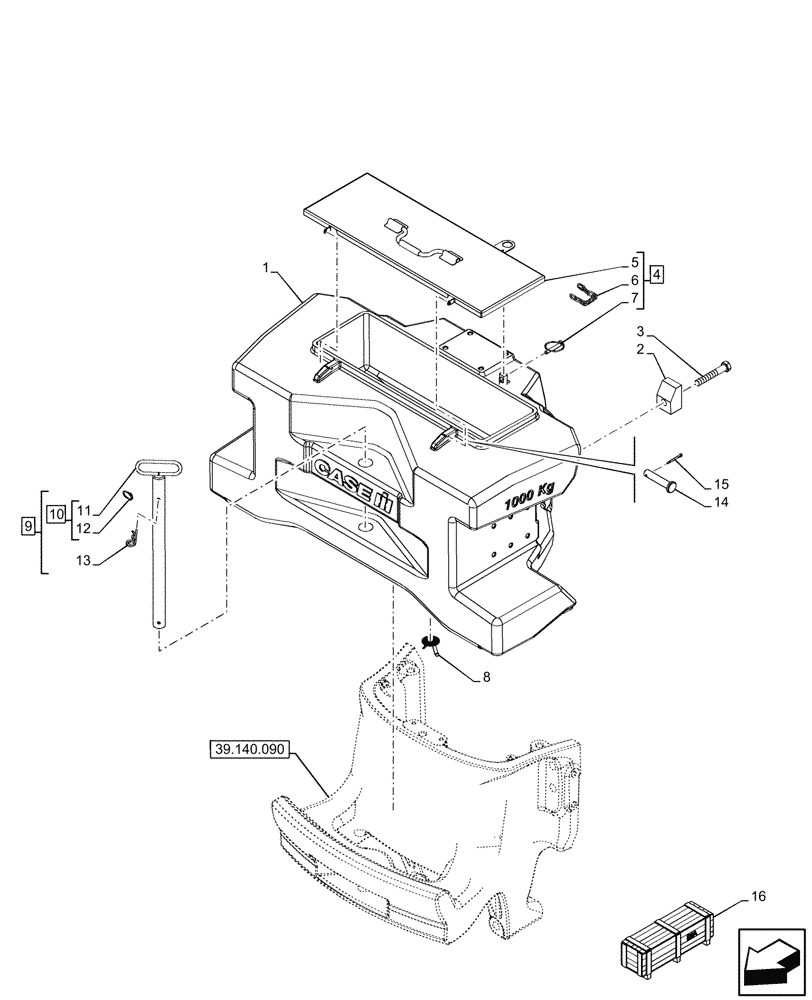

Запчасти Case IH OPTUM 270 CVT (39.140.011) - VAR - 758775 - FRONT, BALLAST (1000 KG) (39) - FRAMES AND BALLASTING

1

47927145

WEIGHT,1000 KG

1000 KG

1шт.

2

87376911

CLAMP,0.932 Kg

2шт.

3

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

4

47911333

COVER ASSY

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 4

1шт.

6

47788368

CHAIN

1шт.

7

82013836

ROLL PIN,6mm OD

1шт.

8

82021866

GRILLE

1шт.

9

47777881

PIN

ASSY, Incl 10 - 13

1шт.

10

47729345

PIN,31mm OD x 531.5mm L

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Pin, Incl in 10

1шт.

12

44901192

SNAP RING,25mm ID

1шт.

13

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

14

376876

CLEVIS PIN,6mm OD x 30mm L

2шт.

15

86639114

COTTER PIN,M1.6 x 10

2шт.

16

731027024

DIA KIT, TRACTOR

Ballast, 1000kg Weight, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
