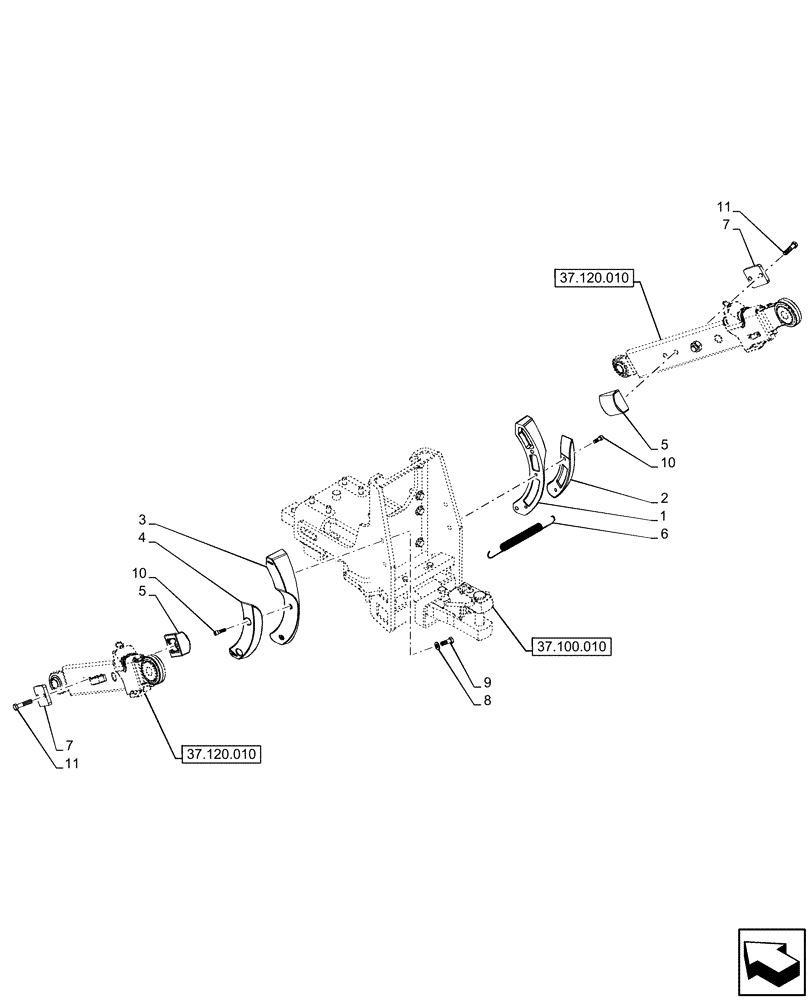

Запчасти Case IH OPTUM 270 CVT (37.120.370) - VAR - 758086 - REAR, HITCHES, DRAWBARS AND IMPLEMENT COUPLINGS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47679903

STOP

1шт.

2

47679904

ARM

1шт.

3

47679906

STOP

1шт.

4

47680741

ARM

1шт.

5

47686138

PLATE

2шт.

6

4959776

SPRING,33mm OD x 400mm L

1шт.

7

87332334

PLATE

2шт.

8

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

9

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

10

14331330

HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 10.9, Full Thd

4шт.

11

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

4шт.
