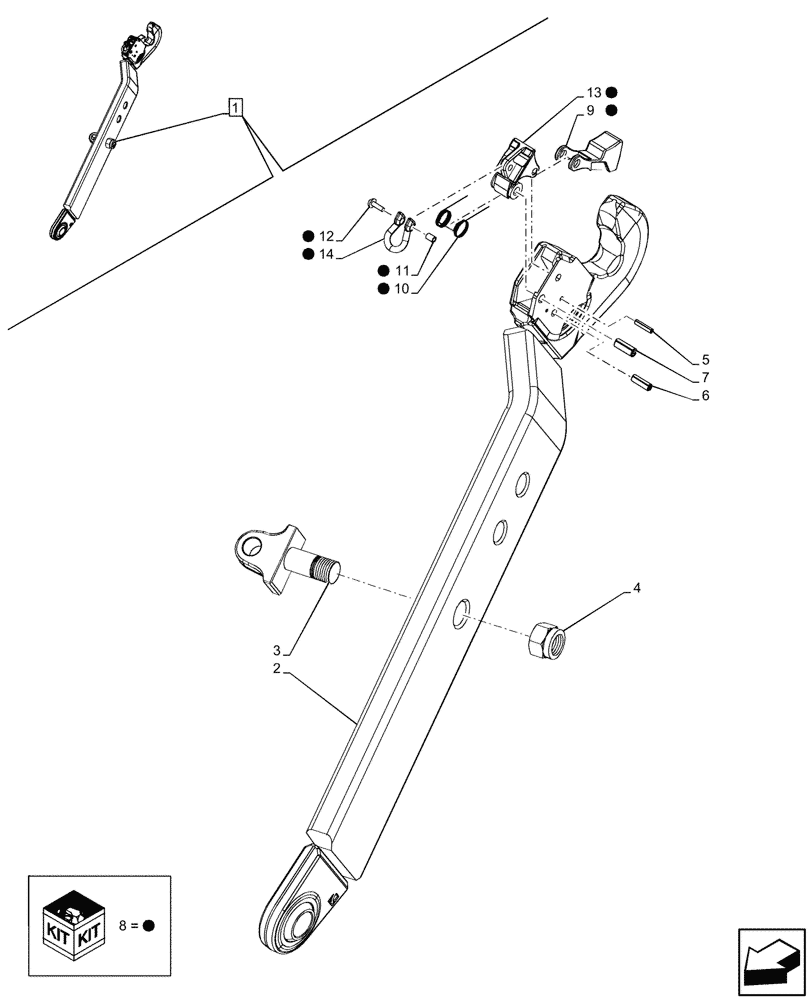

Запчасти Case IH OPTUM 270 CVT (37.120.130) - VAR - 758760, 758761, 758762 - REAR, 3 POINT HITCH, CAT 3, ARM, W/ QUICK ATTACH HOOK LINK ENDS, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47523841

LIFT ARM

ASSY, RH, Incl 2 - 14

1шт.

1

47523842

LIFT ARM

ASSY, LH, Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Hook, Incl in 1

1шт.

3

47631202

BOLT

1шт.

4

47632559

NUT

1шт.

5

13942970

ROLL PIN,M6 x 45, Coiled

1шт.

6

13916870

ROLL PIN,M10 x 45, Coiled

1шт.

7

47637504

SLOTTED PIN

1шт.

8

47637488

REPAIR KIT

Incl 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

Lock, Incl in 8

1шт.

10

47637494

SPRING

Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Pin, Incl in 8

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 8

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Pivot, Incl in 8

1шт.
