(37.120.120) - VAR - 758767 - REAR, 3 POINT HITCH, W/ CAT. 2/3 TELESCOPIC ENDS, CAT 3

Запчасти Case IH OPTUM 270 CVT (37.120.120) - VAR - 758767 - REAR, 3 POINT HITCH, W/ CAT. 2/3 TELESCOPIC ENDS, CAT 3 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

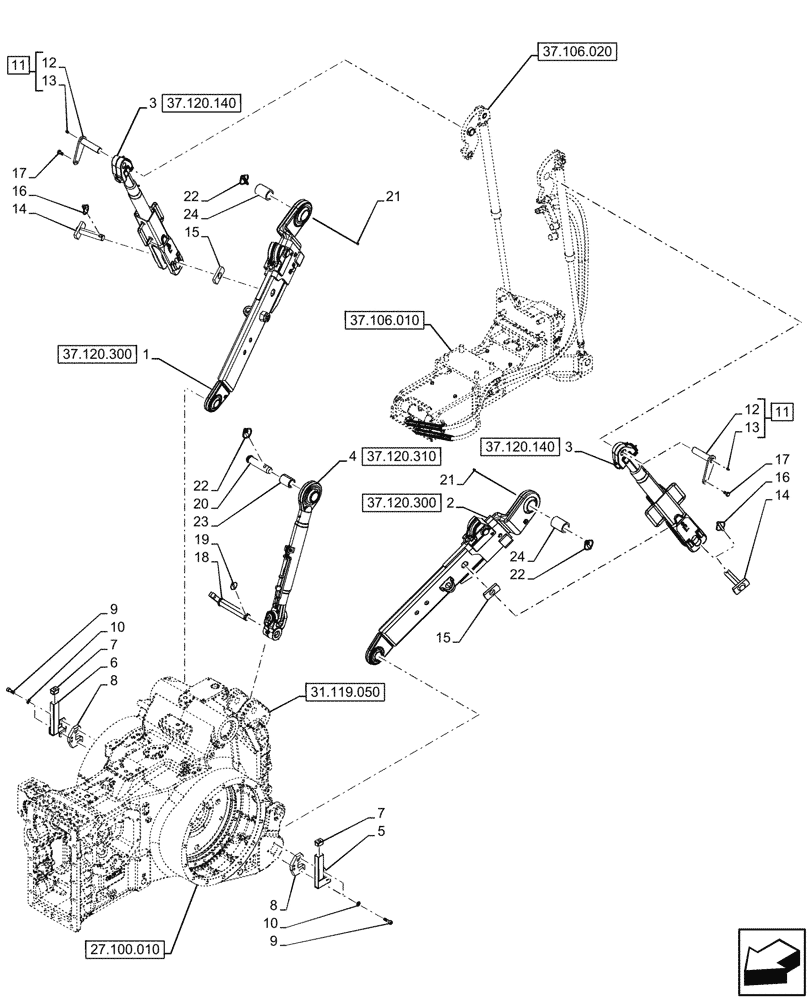

Схема запчастей Case IH OPTUM 270 CVT - (37.120.120) - VAR - 758767 - REAR, 3 POINT HITCH, W/ CAT. 2/3 TELESCOPIC ENDS, CAT 3 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.300
24
17
1
12
22
3
21
13
21
16
16
10
11
15
7
19
24
7
9
23
17
20
3
14
14
22
8
6
10
5
2
12
15
8
18
13
9
4
22
11
37.106.020
37.120.140
37.120.140
37.106.010
27.100.010
37.120.310
37.120.300
31.119.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47526123

LIFT ARM

RH, ASSY

1шт.

2

47526124

LIFT ARM

LH, ASSY

1шт.

3

47528360

LIFTING ROD

ASSY

2шт.

4

47527789

UPPER LINK

ASSY

1шт.

5

47607383

SHIELD

LH

1шт.

6

47607397

SHIELD

RH

1шт.

7

84152491

GROMMET,12.8mm ID x 23mm H x 35mm L x 25mm Thk

2шт.

8

5191331

PLATE

2шт.

9

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

4шт.

10

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

4шт.

11

87317296

PIN,28mm OD x 122.5mm L

ASSY, Incl 12 (Qty 1), 13 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 11

2шт.

13

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

14

47630160

HEADED PIN,28mm OD x 132mm L

2шт.

15

47630162

PLATE

2шт.

16

47125579

LINCH PIN,11.5mm OD

2шт.

17

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

18

47912927

HEADED PIN,170mm L

1шт.

19

82013836

ROLL PIN,6mm OD

1шт.

20

44015196

PIN,31.75mm OD x 146mm L

1шт.

21

82001040

CABLE TIE,.19" x 11.5"

2шт.

22

5166585

LOCK PIN,11mm OD

3шт.

23

87708029

BUSHING,32.7mm ID x 44.34mm OD x 60mm L

1шт.

24

383347A1

SPACER,38.1mm ID x 50.8mm OD x 70.9mm L

2шт.
