Запчасти Case IH OPTUM 270 CVT (37.120.070) - VAR - 758764 - REAR, 3 POINT HITCH, CAT 4 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

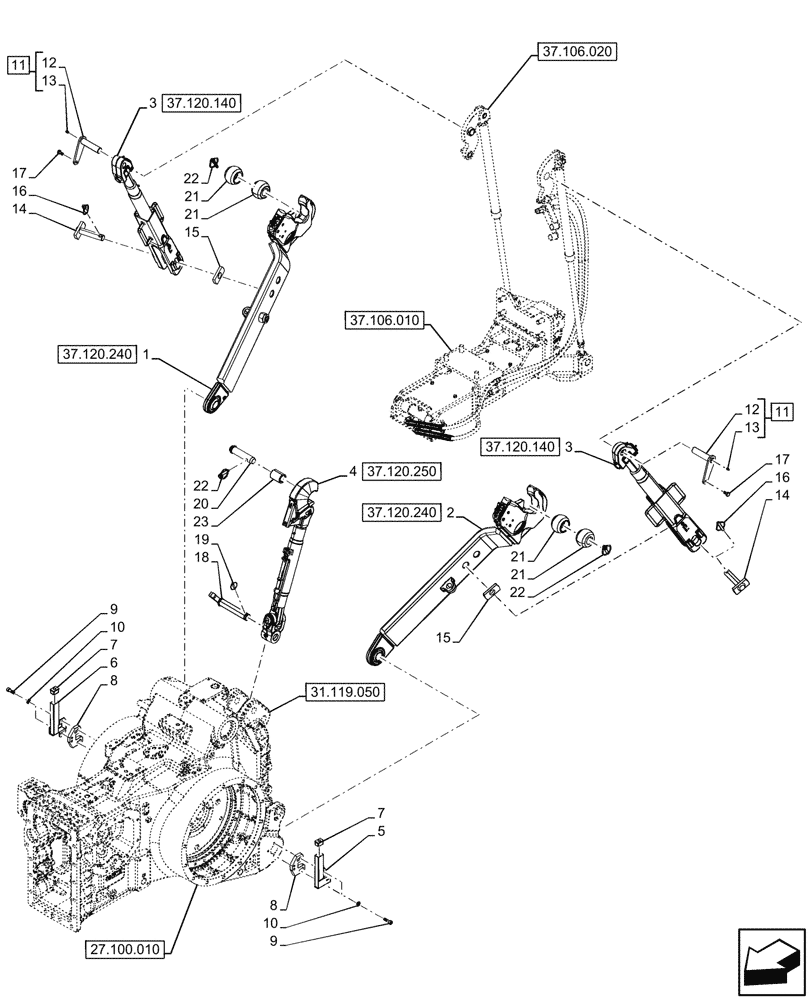

Схема запчастей Case IH OPTUM 270 CVT - (37.120.070) - VAR - 758764 - REAR, 3 POINT HITCH, CAT 4 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
31.119.050
21
8
15
21
23
6
18
7
16
13
14
5
3
1
2
16
22
21
17
20
9
15
11
12
10
19
3
9
14
8
22
13
7
4
21
11
22
12
10
17
37.106.020
37.120.140
37.120.140
37.106.010
27.100.010
37.120.240
37.120.240
37.120.250

Артикул

Название

Примечание

Количество

1

47523843

LIFT ARM

RH, ASSY

1шт.

2

47523844

LIFT ARM

LH, ASSY

1шт.

3

47528360

LIFTING ROD

ASSY

2шт.

4

47527575

UPPER LINK

ASSY

1шт.

5

47607383

SHIELD

LH

1шт.

6

47607397

SHIELD

RH

1шт.

7

84152491

GROMMET,12.8mm ID x 23mm H x 35mm L x 25mm Thk

2шт.

8

5191331

PLATE

2шт.

9

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

4шт.

10

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

4шт.

11

87317296

PIN,28mm OD x 122.5mm L

ASSY, Incl 12 (Qty 1), 13 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 11

1шт.

13

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

14

47630160

HEADED PIN,28mm OD x 132mm L

2шт.

15

47630162

PLATE

2шт.

16

47125579

LINCH PIN,11.5mm OD

2шт.

17

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

18

47912927

HEADED PIN,170mm L

1шт.

19

82013836

ROLL PIN,6mm OD

1шт.

20

44015196

PIN,31.75mm OD x 146mm L

1шт.

21

87585508

BALL JOINT,51.25mm ID x 85mm OD

51.25mm ID x 85mm OD x 57.25mm L

2шт.

21

87585509

BALL JOINT,37.5mm ID x 85mm OD

37.505mm ID x 85mm OD x 57.25mm L

2шт.

22

5166585

LOCK PIN,11mm OD

3шт.

23

87708029

BUSHING,32.7mm ID x 44.34mm OD x 60mm L

1шт.

Выбрано товаров: 24
