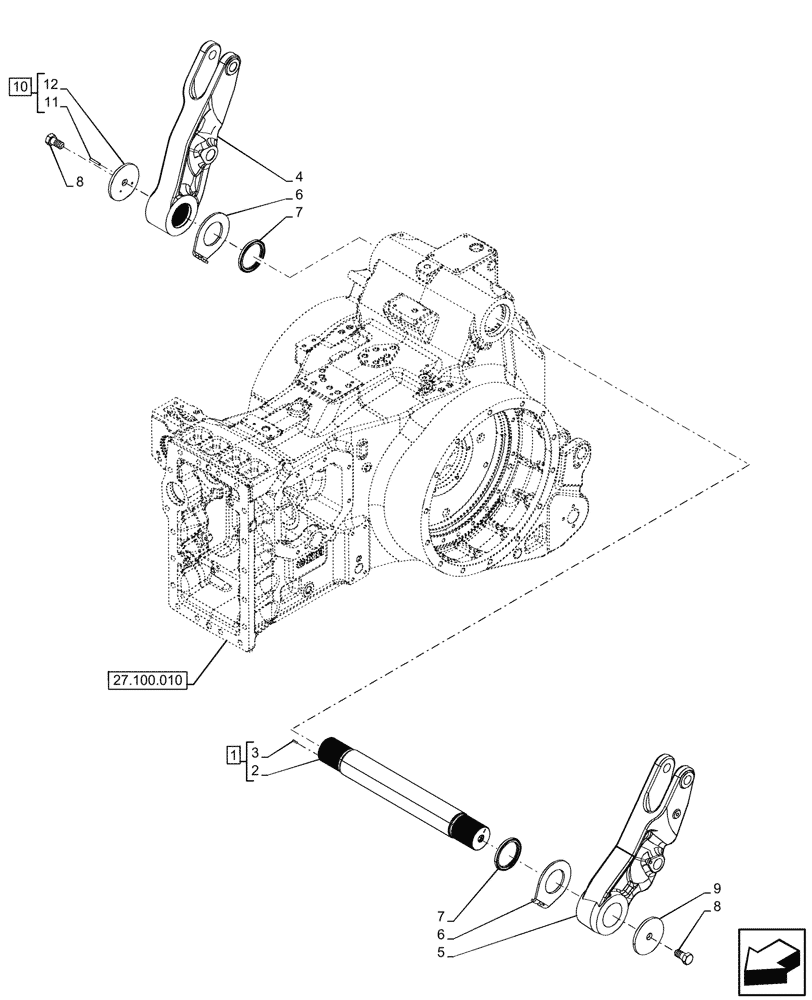

Запчасти Case IH OPTUM 270 CVT (37.110.010) - VAR - 758760, 758761, 758762, 758763, 758764, 758765, 758766, 758767 - REAR, 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5198501

ROCKSHAFT,626mm L

ASSY, 626mm, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

14163971

LOCK PIN,4mm OD x 20mm L

1шт.

4

5198416

LIFT ARM

RH

1шт.

5

5198417

LIFT ARM

LH

1шт.

6

5185953

SPACER,75.3mm ID x 130mm OD x 6mm L

2шт.

7

5185955

SEAL,80mm ID x 100mm OD x 8mm Thk

2шт.

8

15987924

BOLT,Hex, M20 x 1.5 x 40mm, Cl 8.8

2шт.

9

5185967

WASHER,21mm ID x 116mm OD x 8mm Thk

1шт.

10

5198505

WASHER,20.5mm ID x 115mm OD x 8mm Thk

ASSY, Incl 11, 12

1шт.

11

10336910

SPINDLE,6mm OD x 38mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Washer, Incl in 10

1шт.
