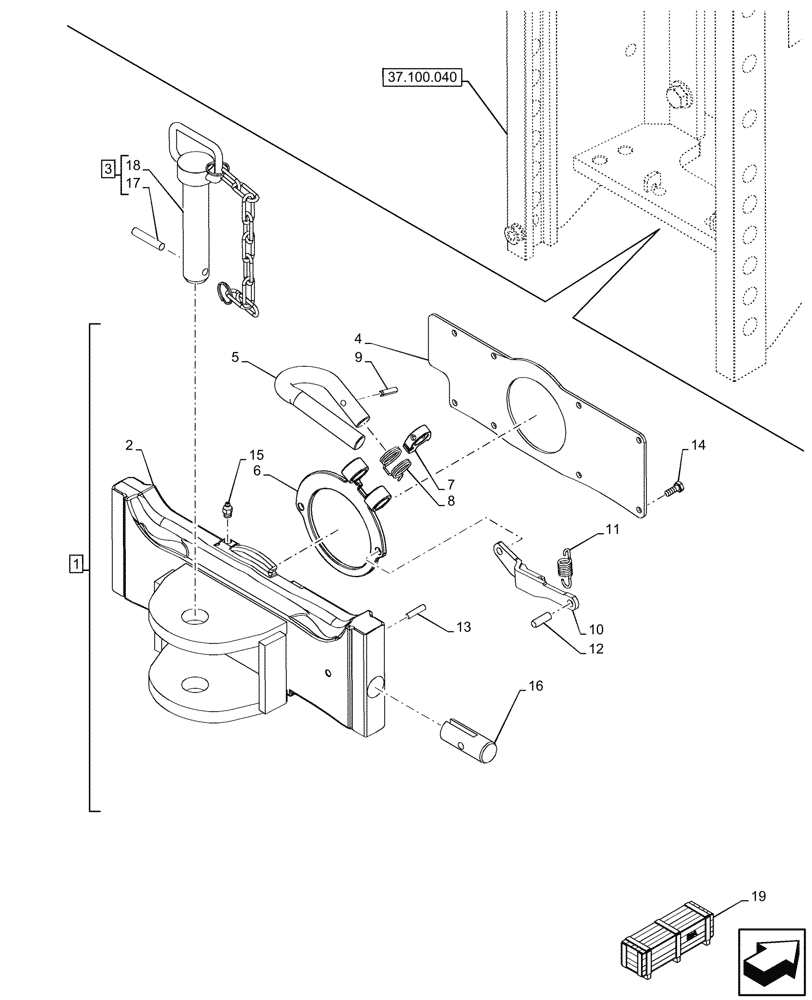

Запчасти Case IH OPTUM 270 CVT (37.106.110) - VAR - 758657, 758658 - CLEVIS C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47539904

TOW HOOK

ASSY, Incl 2, 4 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Coupling Ptd, Incl in 1

1шт.

3

47604283

PIN,28mm OD x 135mm L

ASSY, Incl 17, 18

1шт.

4

47689199

PLATE

1шт.

5

47689176

HANDLE

1шт.

6

47689185

BRACKET

1шт.

7

47689182

HOLDER

1шт.

8

47689191

SPRING

1шт.

9

14604379

PIN,6mm OD x 36mm L

1шт.

10

47689184

ROD

2шт.

11

47689196

SPRING

2шт.

12

47689801

DOWEL,8mm OD x 24mm L

2шт.

13

47689679

DOWEL,6mm OD x 26mm L

2шт.

14

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

8шт.

15

87563868

FITTING,M8 x 1.17mm

2шт.

16

47689186

LOCK PIN

2шт.

17

87657982

COTTER PIN,11.8mm x 115.1mm L

1шт.

18

NSS

NOT SOLD SEPARAT

Hair Pin Cotter, Incl in 3

1шт.

19

731021014

DIA KIT, TRACTOR

Hook Cat. C, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
