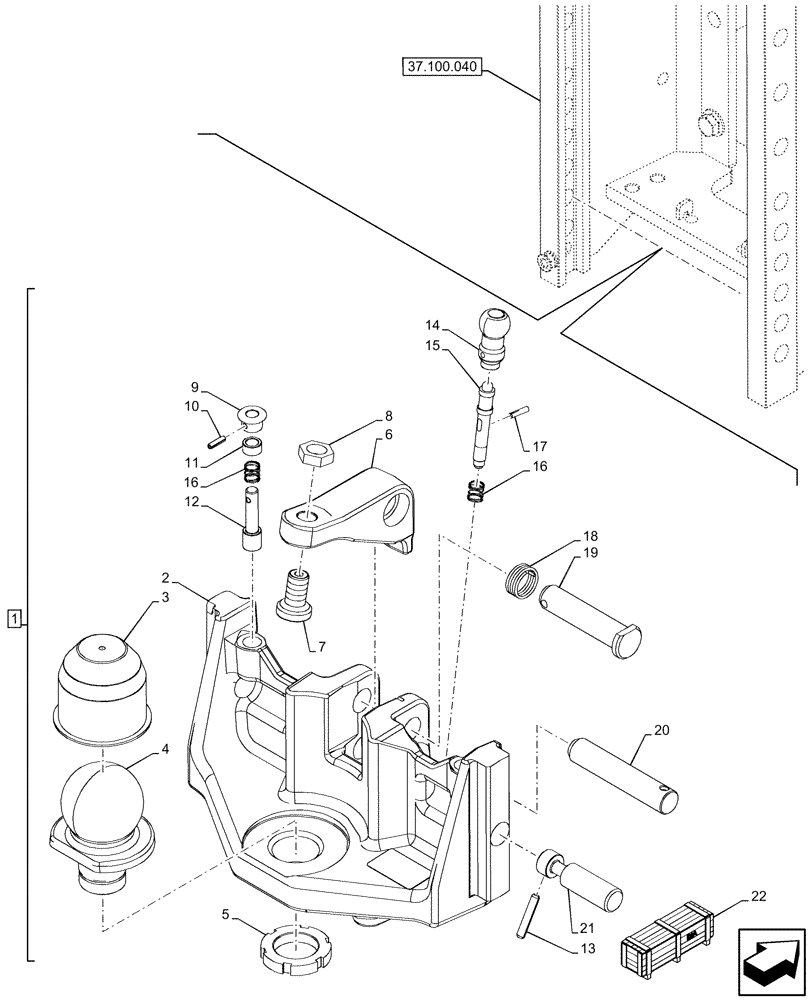

Запчасти Case IH OPTUM 270 CVT (37.106.090) - VAR - 758659 - W/ K80 BALL (GERMANY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47540203

TOW HOOK

ASSY, Incl 2 - 21

1шт.

2

47689883

FRAME

1шт.

3

47697720

DUST CAP

1шт.

4

47690690

PIN

1шт.

5

47690606

NUT,M45 x 1.5

1шт.

6

47690616

LEVER

1шт.

7

47690693

ADJUSTMENT SCREW,35.1Kg

1шт.

8

920008881

THIN NUT,M20 x 1.5

1шт.

9

47689894

BUSHING

2шт.

10

14600871

LOCK PIN,M5 x 20, Slotted

2шт.

11

47689922

BUSHING,Zinc

2шт.

12

47689926

LOCK PIN

2шт.

13

14607370

ROLL PIN,M8 x 45, Slotted

3шт.

14

47689908

BUSHING,Black

1шт.

15

47689920

CONTROL

1шт.

16

47689929

SPRING,14.1mm ID x 39.2mm OD x 0.9mm Thk

3шт.

17

47692629

DOWEL,5mm OD x 24mm L

1шт.

18

47689896

SPRING

1шт.

19

47689905

PIN

1шт.

20

47689918

LOCK PIN

1шт.

21

47689923

PIN

2шт.

22

731016014

DIA KIT, TRACTOR

80mm Ball Tow Hitch Tractor and Trailer End - German - HD, Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
