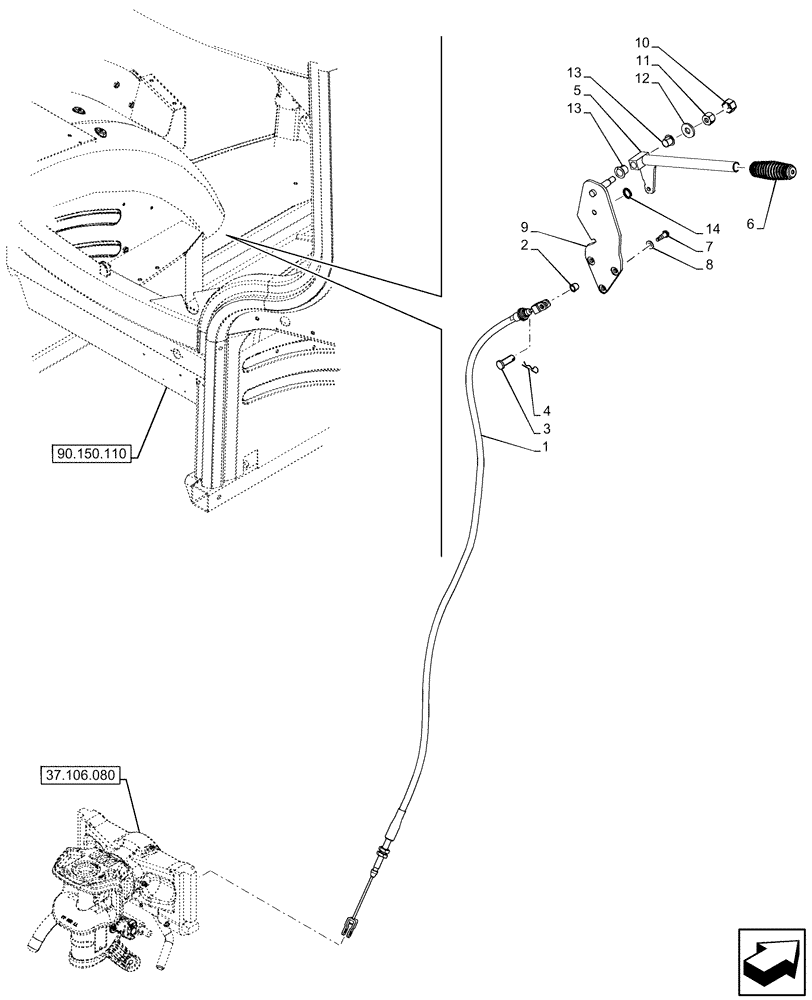

Запчасти Case IH OPTUM 270 CVT (37.106.070) - VAR - 758113 - AUTOMATIC PICK-UP HITCH, CONTROL LEVER, CABLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47802834

CABLE,2376mm L

1шт.

2

87330878

CAP,9.50mm ID x 13.30

1шт.

3

81868749

PIN,7.9mm OD x 15.08mm L

1шт.

4

83957394

PIN,0.072" x 0.82"

1шт.

5

87665892

LEVER

1шт.

6

87666034

HANDLE GRIP

1шт.

7

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

3шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

9

47439526

BRACKET

1шт.

10

82012814

CAP,M10

1шт.

11

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.

12

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

13

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

14

81822628

CIRCLIP,1/2"

1шт.
