(37.100.040) - VAR - 758651, 758652, 758653, 758654, 758655, 758656, 758657, 758658 - DRAWBAR FRAME (FRANCE, GERMANY, ITALY)

Запчасти Case IH OPTUM 270 CVT (37.100.040) - VAR - 758651, 758652, 758653, 758654, 758655, 758656, 758657, 758658 - DRAWBAR FRAME (FRANCE, GERMANY, ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

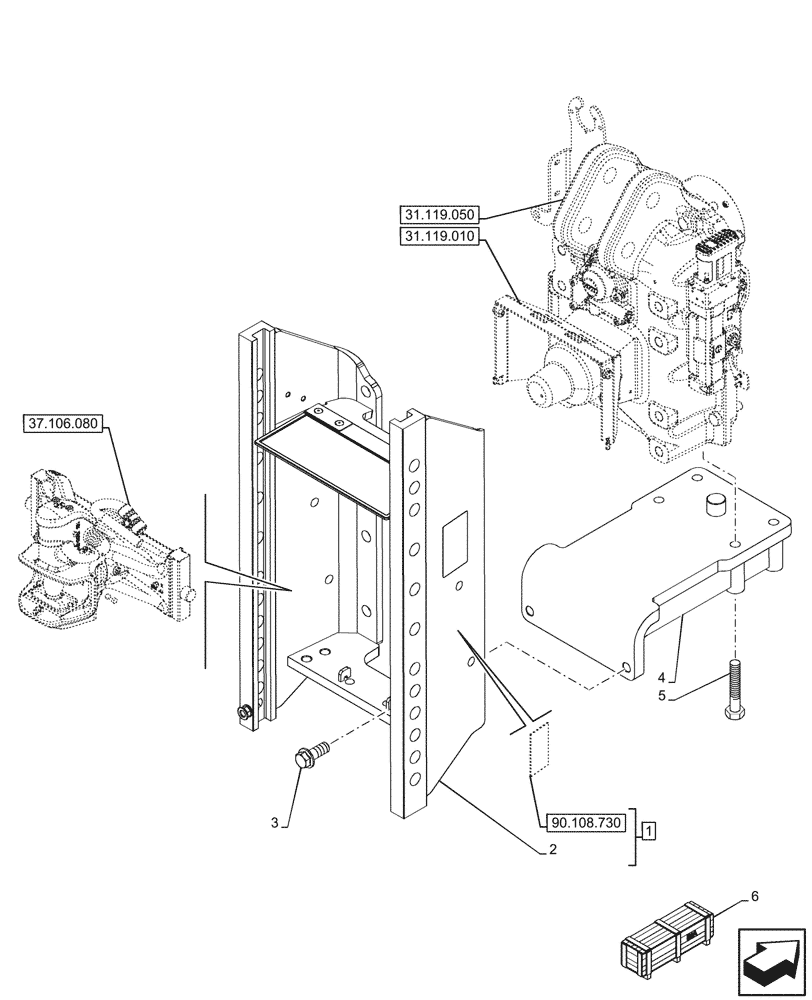

Схема запчастей Case IH OPTUM 270 CVT - (37.100.040) - VAR - 758651, 758652, 758653, 758654, 758655, 758656, 758657, 758658 - DRAWBAR FRAME (FRANCE, GERMANY, ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
90.108.730
5
1
2
6
4
3
31.119.010
37.106.080
31.119.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47910622

FRAME

ASSY, Incl 2

1шт.

See Frame Ptd also in section 90.108.730

1шт.

2

NSS

NOT SOLD SEPARAT

Frame Ptd, Incl in 1

1шт.

3

47700589

SCREW,Hex, M20 x 1.5 x 50mm L, Cl 10.9

10шт.

4

47846569

SUPPORT

1шт.

5

15985831

BOLT,Hex, M18 x 1.5 x 130mm, Cl 10.9

4шт.

6

731011014

DIA KIT, TRACTOR

Modular Slider Frame, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
