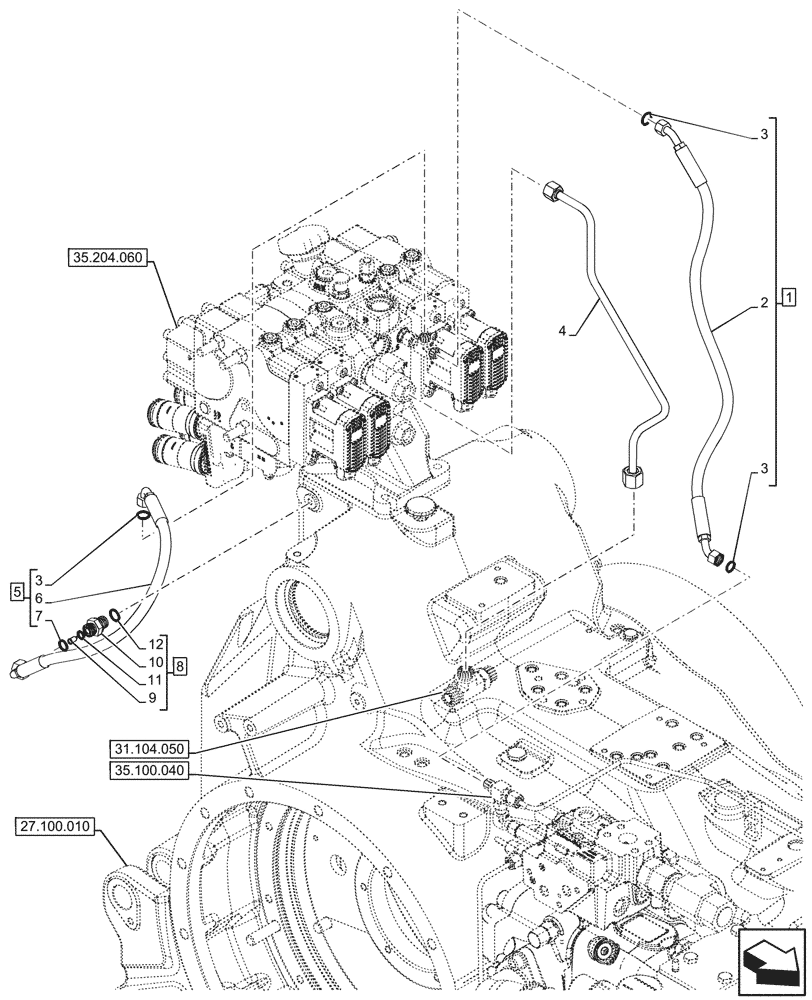

Запчасти Case IH OPTUM 270 CVT (35.204.200) - VAR - 758085, 758086 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47877540

HOSE,6.3mm ID x 700mm L

ASSY, from Rear Remote Control Valve to Hydraulic Pump, 6.3mm ID x 700mm, Incl 2, 3 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

4

47724966

PIPE

from Rear Remote Control Valve to Hydraulic Services Control

1шт.

5

84162654

HOSE,6.3mm ID x 552mm L

ASSY, from Rear Remote Control Valve to Rear Transmission Housing, 6.3mm ID x 552mm, Incl 3 (Qty 1), 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

ASSY, Incl 9 - 12

1шт.

9

133519C1

SCREEN

1шт.

10

NSS

NOT SOLD SEPARAT

Orifice, Incl in 7

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.
