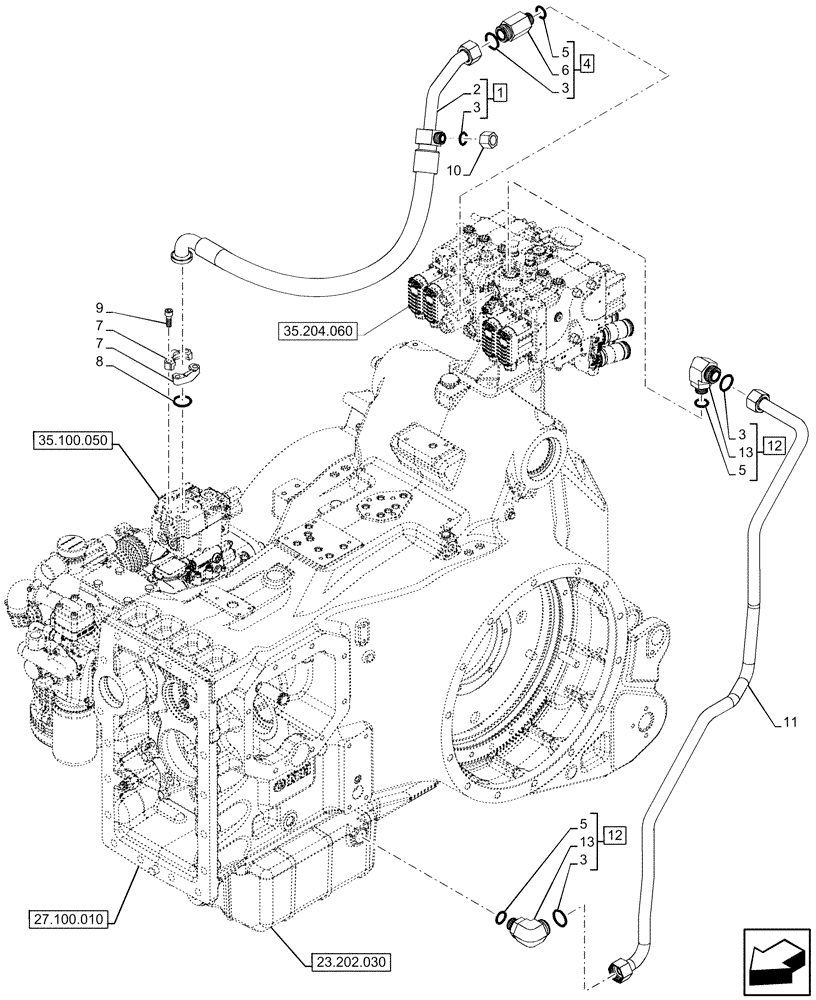

Запчасти Case IH OPTUM 270 CVT (35.204.190) - VAR - 758085, 758086 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47877493

PIPE

ASSY, from Rear Remote Control Valve to Hydraulic Valve, 25mm ID x 840mm, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

4

47842440

FITTING,M27 x 2 x 86mm L

ASSY, Incl 3 (Qty1), 5 (Qty 1), 6

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

70921116

HALF-FLANGE

2шт.

8

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

9

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

10

9840576

CAP,1" - 14 ORFS

1шт.

11

47724806

PIPE

from Rear Remote Control Valve to Drop Box

1шт.

12

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 3 (Qty1), 5 (Qty 1), 13 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

2шт.
