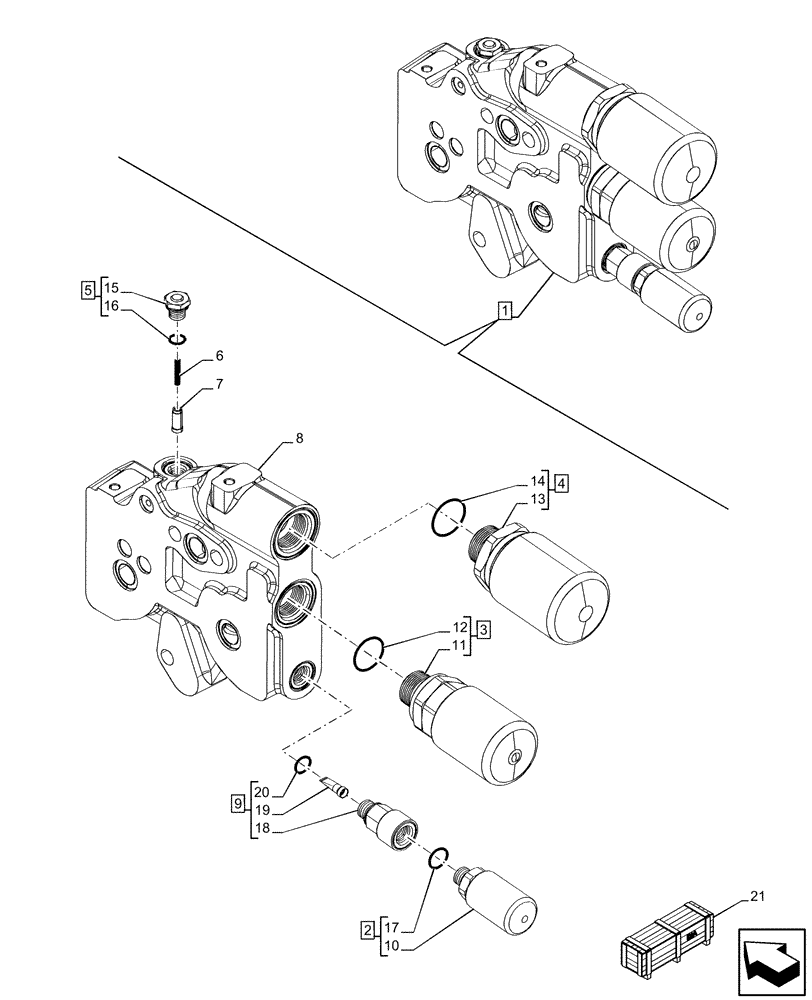

Запчасти Case IH OPTUM 270 CVT (35.204.150) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87607904

HYD VALVE SECTION

ASSY, Power Beyond, Incl 2 - 20

1шт.

2

87310816

PUSH-PULL COUPLING

ASSY, Incl 10, 17

1шт.

3

87310813

PUSH-PULL COUPLING

ASSY, Incl 11, 12

1шт.

4

87310811

PUSH-PULL COUPLING

ASSY, Incl 13, 14

1шт.

5

87648607

PLUG,M12 x 1.5 ORB

ASSY, Incl 15, 16

1шт.

6

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

7

87648631

PIN,8mm OD x 19mm L

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

84174591

HYD CONNECTOR,Hex, M14 x 1.5

ASSY, Incl 18 -20

1шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

11

NSS

NOT SOLD SEPARAT

Coupling, Incl in 3

1шт.

12

14438185

O-RING,24mm ID x 3mm

1шт.

13

NSS

NOT SOLD SEPARAT

Coupling, Incl in 4

1шт.

14

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

16

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Coupling, Incl in 2

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

19

NSS

NOT SOLD SEPARAT

Screen, Incl in 9

1шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

718917054

DIA KIT, TRACTOR

Power Beyond Slice, Incl 1 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
