Запчасти Case IH OPTUM 270 CVT (35.204.120) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

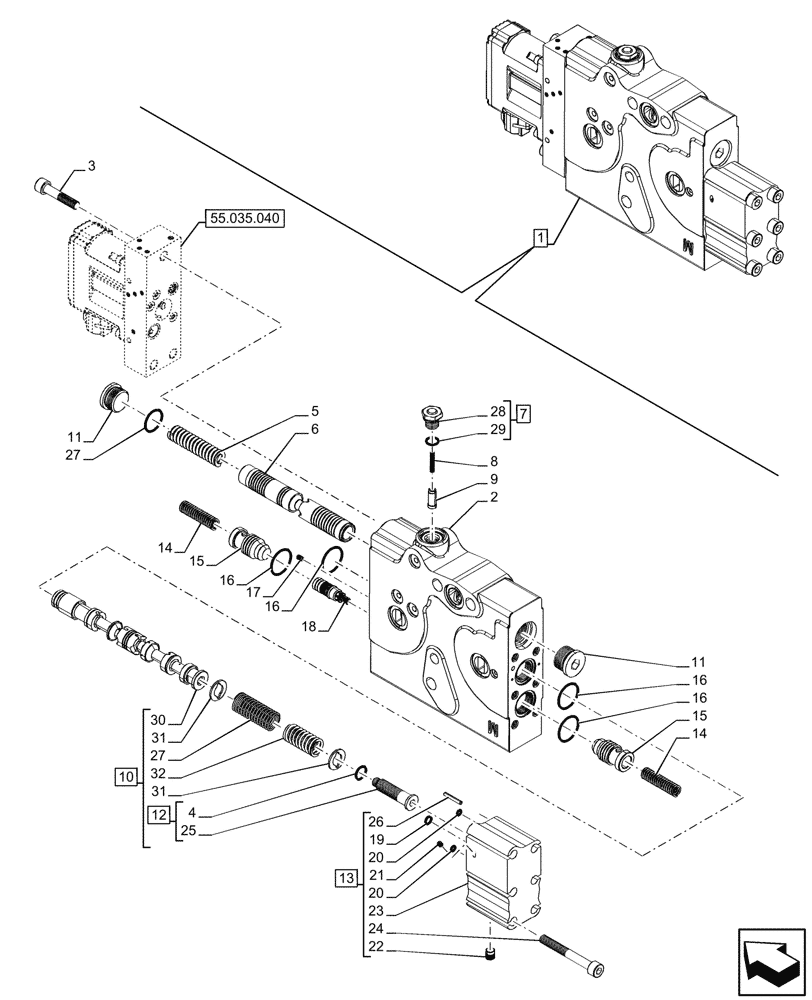

Схема запчастей Case IH OPTUM 270 CVT - (35.204.120) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
55.035.040
9
26
27
11
32
4
30
15
3
5
25
20
14
6
11
16
18
16
14
16
27
23
7
8
10
15
1
20
22
28
12
19
2
29
31
21
13
24
17
31
16

Артикул

Название

Примечание

Количество

1

47723760

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 2 - 32

1шт.

See also Components in Figure 55.035.040

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

4

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

5

47664791

SPRING,15.25mm OD x 82.58mm L

1шт.

6

47839041

SPOOL,15.9mm ID x 18.63mm OD x 119mm L

1шт.

7

87648607

PLUG,M12 x 1.5 ORB

ASSY, Incl 28, 29

1шт.

8

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

9

87648631

PIN,8mm OD x 19mm L

1шт.

10

47801801

SPOOL,19.04mm OD

ASSY, Incl 4, 12, 25, 27, 30 - 32

1шт.

11

86625138

PLUG,7/18" - 14

2шт.

12

47801796

PLUG

ASSY, Incl 4, 25

1шт.

13

47733217

PILOT VALVE

ASSY, Incl 19 - 24, 26

1шт.

14

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

15

47683317

POPPET

2шт.

16

47422966

SEAL,23.52mm ID x 1.78mm Thk

4шт.

17

84579020

PLUG,1.81" - 2.75"

5шт.

18

84307011

CHECK VALVE

1шт.

19

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

20

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

21

282836A1

PLUG,4mm OD x 4mm L

2шт.

22

282839A1

PLUG,8mm OD x 8.5mm L

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 13

1шт.

24

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

26

13902270

ROLL PIN,M3.5 x 20, Coiled

1шт.

27

47801794

SPRING,13.34mm OD x 46.67mm L

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

29

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

Spool, Incl in 10

1шт.

31

47801792

WASHER,10.18mm ID x 20.5mm OD x 1.5mm Thk

2шт.

32

47801793

SPRING,19.1mm OD x 39.34mm L

1шт.

Выбрано товаров: 33
