Запчасти Case IH OPTUM 270 CVT (35.204.080) - VAR - 758061 - 5 REMOTE CONTROL VALVES (EHR W/O PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

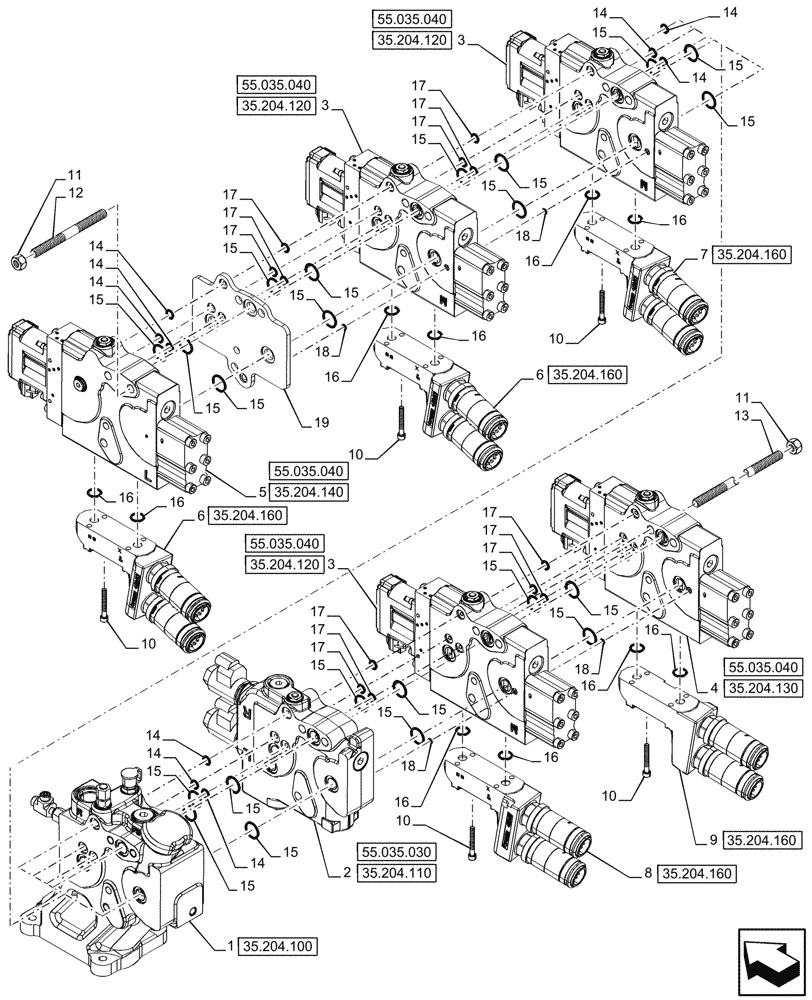

Схема запчастей Case IH OPTUM 270 CVT - (35.204.080) - VAR - 758061 - 5 REMOTE CONTROL VALVES (EHR W/O PB), COMPONENTS (35) - HYDRAULIC SYSTEMS
55.035.030
4
3
1
15
18
11
15
15
10
13
17
17
15
15
15
14
19
15
17
18
18
15
12
16
14
18
10
16
15
8
15
17
10
14
16
15
5
15
15
15
17
14
14
16
15
16
14
3
17
16
10
15
16
17
15
11
17
15
9
14
15
6
14
15
17
14
6
16
3
10
2
16
16
17
7
17
17
15
35.204.160
35.204.160
35.204.160
35.204.160
35.204.160
15
55.035.040
55.035.040
55.035.040
55.035.040
55.035.040
35.204.130
35.204.120
35.204.120
35.204.120
35.204.140
35.204.100
35.204.110

Артикул

Название

Примечание

Количество

1

47722932

MANIFOLD VALVE

In/Out, ASSY

1шт.

2

47887017

DISTRIBUTOR

Hitch, ASSY

1шт.

47887017R

REMAN-HYD VALVE

Reman Hitch Assy

1шт.

47887017C

CORE-VALVE HYD

Return Number

1шт.

3

47723760

HYDRAULIC VALVE

Main Low Leak, ASSY

3шт.

4

47723762

HYDRAULIC VALVE

RH Low Leak, ASSY

1шт.

4

47723762R

REMAN-HYD VALVE

RH Low Leak, ASSY

1шт.

4

47723762C

CORE-VALVE HYD

Return Number

1шт.

5

47723761

HYDRAULIC VALVE

LH Low Leak, ASSY

1шт.

5

47723761R

REMAN-HYD VALVE

Reman LH Low Leak, ASSY

1шт.

5

47723761C

CORE-VALVE HYD

Return Number

1шт.

6

87596458

HYDRAULIC MANIFOLD

Quick Coupler, Group 5, ASSY

2шт.

7

87381983

HYDRAULIC MANIFOLD

Quick Coupler, Group 3, ASSY

1шт.

8

87381982

HYDRAULIC MANIFOLD

Quick Coupler, Group 2, ASSY

1шт.

9

87381981

HYDRAULIC MANIFOLD

Quick Coupler, Group 1, ASSY

1шт.

10

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

20шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

12

87604618

STUD,M12 x 1.75 x 185mm

1шт.

13

84268953

STUD,M12 x 1.75 x 205mm L

5шт.

14

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

15

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

22шт.

16

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

10шт.

17

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

15шт.

18

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

4шт.

19

84539946

PLATE

1шт.

Выбрано товаров: 25
