(35.204.070) - VAR - 758060 - 4 REMOTE CONTROL VALVES (EHR W/PB), COMPONENTS

Запчасти Case IH OPTUM 270 CVT (35.204.070) - VAR - 758060 - 4 REMOTE CONTROL VALVES (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

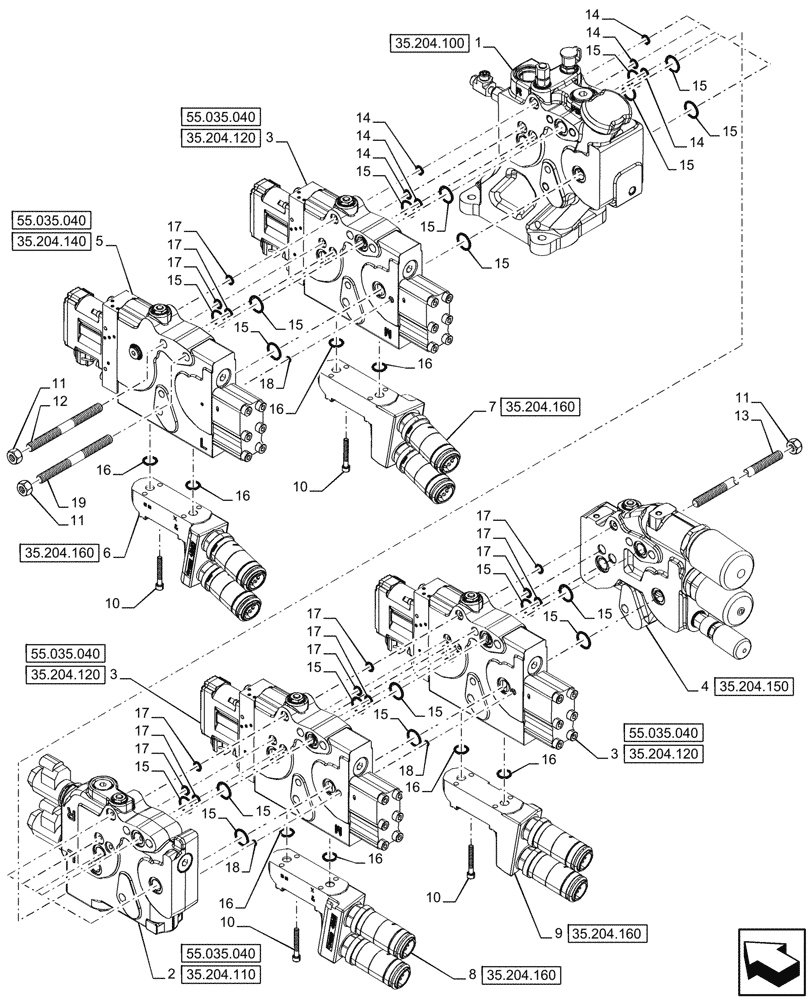

Схема запчастей Case IH OPTUM 270 CVT - (35.204.070) - VAR - 758060 - 4 REMOTE CONTROL VALVES (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.110
16
15
17
15
17
17
17
17
16
3
15
18
17
15
15
16
11
14
18
17
5
11
15
14
15
16
17
3
4
16
6
17
15
15
2
15
19
11
15
15
15
1
3
10
16
10
17
14
16
12
15
9
10
14
17
15
10
15
18
8
15
7
14
13
16
35.204.160
35.204.160
35.204.160
35.204.160
15
15
17
55.035.040
55.035.040
55.035.040
55.035.040
55.035.040
35.204.150
14
35.204.120
35.204.120
35.204.120
35.204.140
35.204.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47722932

MANIFOLD VALVE

In/Out, ASSY

1шт.

2

47887017

DISTRIBUTOR

Hitch, ASSY

1шт.

47887017R

REMAN-HYD VALVE

Reman Hitch Assy

1шт.

47887017C

CORE-VALVE HYD

Return Number

1шт.

3

47723760

HYDRAULIC VALVE

Main Low Leak, ASSY

3шт.

4

87607904

HYD VALVE SECTION

Power Beyond, ASSY

1шт.

5

47723761

HYDRAULIC VALVE

LH Low Leak, ASSY

1шт.

5

47723761R

REMAN-HYD VALVE

Reman LH Low Leak, ASSY

1шт.

5

47723761C

CORE-VALVE HYD

Return Number

1шт.

6

87596458

HYDRAULIC MANIFOLD

Quick Coupler, Group 5, ASSY

1шт.

7

87381983

HYDRAULIC MANIFOLD

Quick Coupler, Group 3, ASSY

1шт.

8

87381982

HYDRAULIC MANIFOLD

Quick Coupler, Group 2, ASSY

1шт.

9

87381981

HYDRAULIC MANIFOLD

Quick Coupler, Group 1, ASSY

1шт.

10

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

16шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

12

87604619

THREADED TIE-ROD,M12 x 1.75 x 135mm L

1шт.

13

87604617

STUD,M12 x 1.75 x 235mm L

3шт.

14

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

15

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

19шт.

16

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

8шт.

17

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

12шт.

18

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

3шт.

19

84543055

STUD,M12 x 1.75 x 145mm L

2шт.
