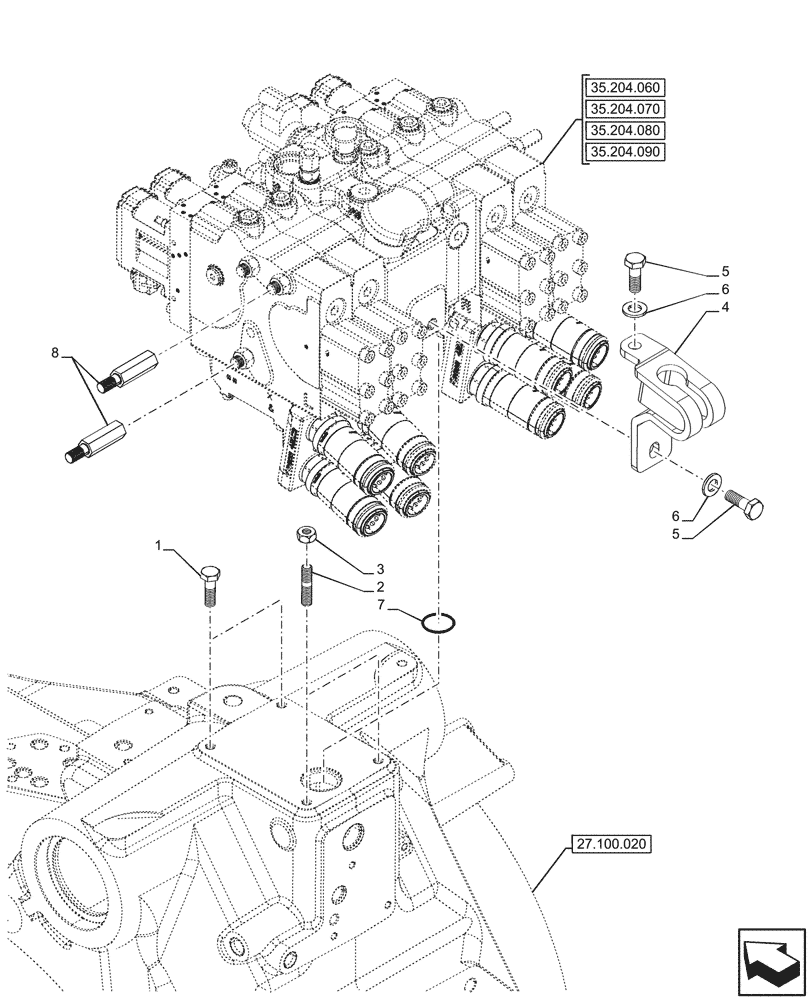

Запчасти Case IH OPTUM 270 CVT (35.204.050) - VAR - 758060, 758061 - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

2

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

3

12164711

NUT,M10 x 1.25, Cl 8

2шт.

4

87352315

BRACKET

Top Link

1шт.

5

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

6

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

7

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

8

47904730

SPACER,Hex, M12 x 1.75 x 77mm L

2шт.
