(35.204.041) - VAR - 758066 - 3 MID-MOUNT CONTROL VALVES

Запчасти Case IH OPTUM 270 CVT (35.204.041) - VAR - 758066 - 3 MID-MOUNT CONTROL VALVES (35) - HYDRAULIC SYSTEMS

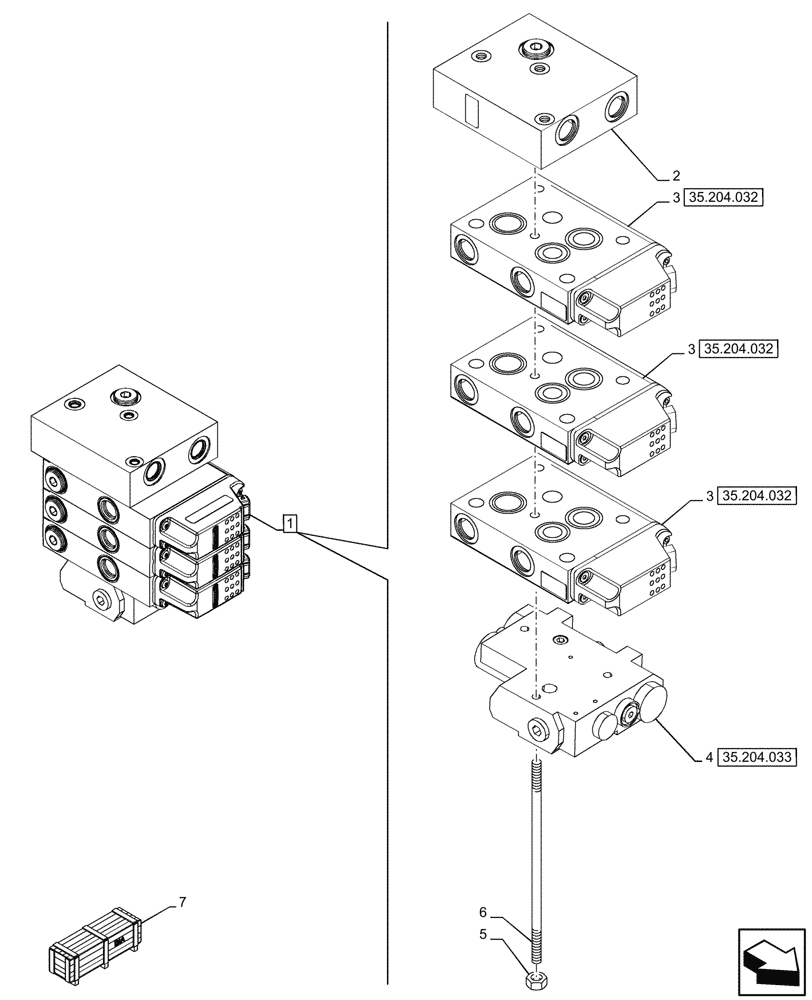

Схема запчастей Case IH OPTUM 270 CVT - (35.204.041) - VAR - 758066 - 3 MID-MOUNT CONTROL VALVES (35) - HYDRAULIC SYSTEMS
35.204.033
3
3
3
3
7
4
5
3
2
1
6
3
35.204.032
35.204.032
35.204.032
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84570224

CONTROL VALVE

ASSY, Incl 2 - 6

1шт.

2

84381621

VALVE SECTION

1шт.

3

84467081

HYDRAULIC VALVE

ASSY

3шт.

3

84467081R

REMAN-HYD VALVE

Reman Valve Assy

3шт.

3

84467081C

CORE-VALVE HYD

Core Return Number

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

16100821

NUT,M8, Cl 10

3шт.

6

47123183

STUD,M8

211mm L

3шт.

7

731008014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 3 Valves, Incl 1 - 6

1шт.
