Запчасти Case IH OPTUM 270 CVT (35.204.040) - VAR - 758066 - 3 MID-MOUNT CONTROL VALVES (35) - HYDRAULIC SYSTEMS

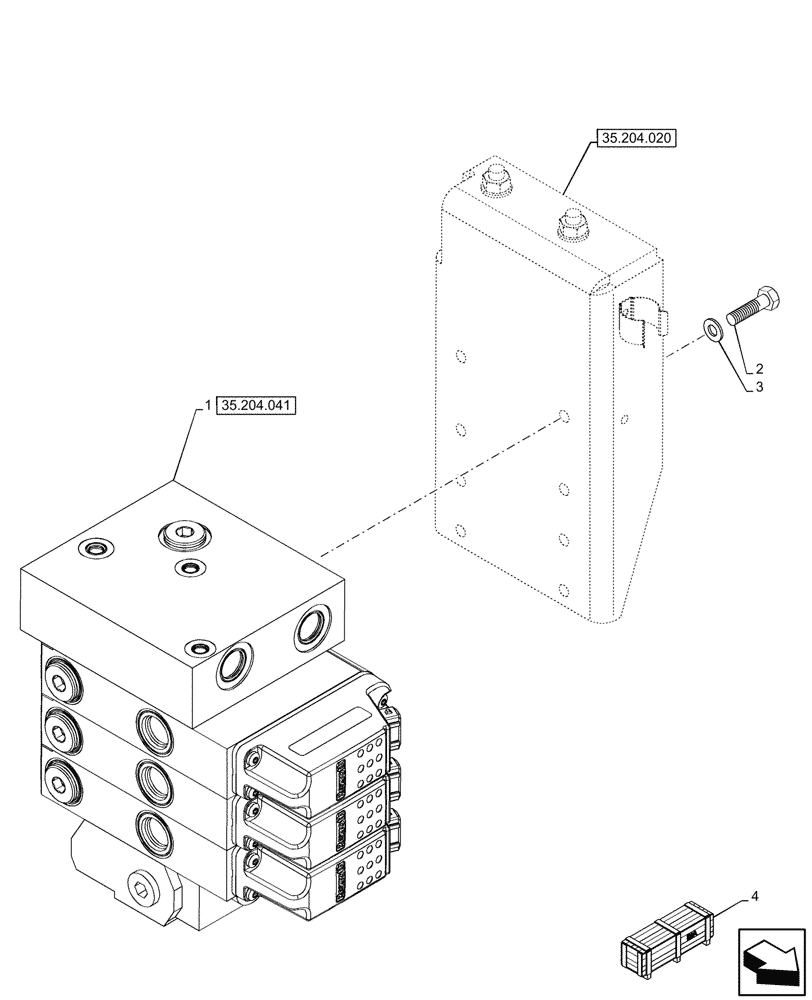

Схема запчастей Case IH OPTUM 270 CVT - (35.204.040) - VAR - 758066 - 3 MID-MOUNT CONTROL VALVES (35) - HYDRAULIC SYSTEMS
35.204.020
3
2
4
1
35.204.041

Артикул

Название

Примечание

Количество

1

84570224

CONTROL VALVE

1шт.

2

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

4шт.

3

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

4

731008014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 3 Valves, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
