(35.204.033) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS

Запчасти Case IH OPTUM 270 CVT (35.204.033) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

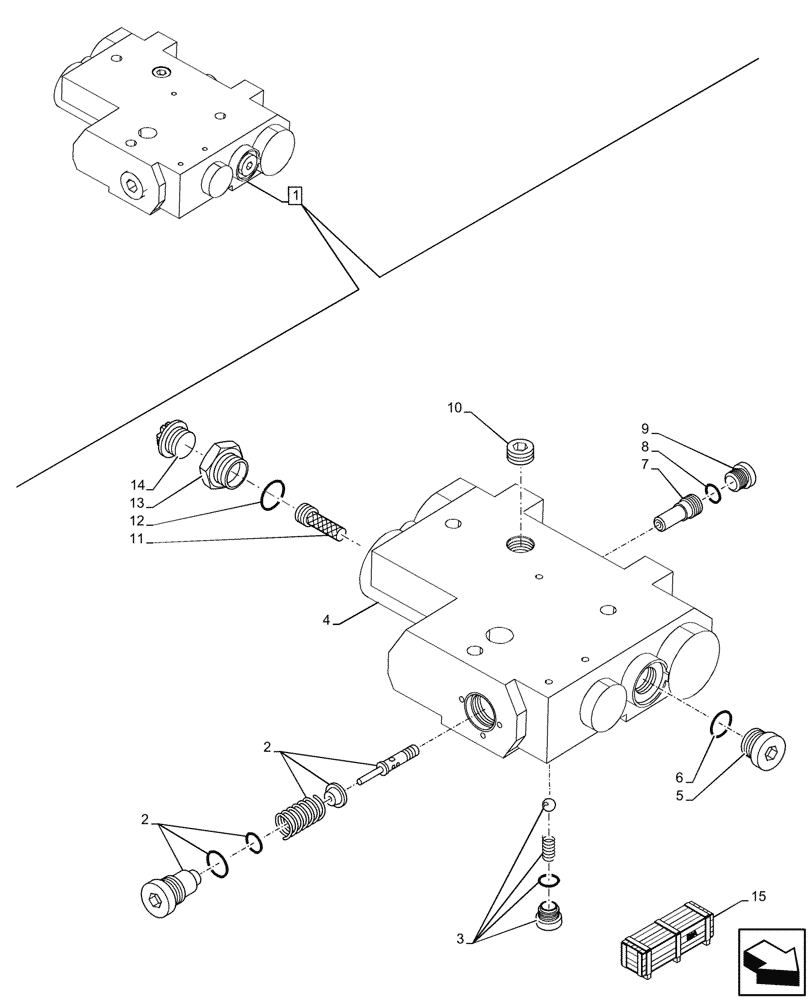

Схема запчастей Case IH OPTUM 270 CVT - (35.204.033) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
6
5
9
11
12
13
1
15
8
4
2
7
2
10
14
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230200

HYD VALVE SECTION

ASSY, Incl 2 - 14

1шт.

2

84230505

KIT

Parts Set

1шт.

3

47129440

REPAIR KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

5

47129439

SCREW

1шт.

6

47129434

O-RING

1шт.

7

47129441

VALVE

1шт.

8

47129432

O-RING

1шт.

9

47129435

PLUG

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

11

47129436

FILTER

1шт.

12

47129433

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Cap, incl in 1

1шт.

15

731004014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 1 Valve, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
