(35.204.032) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS

Запчасти Case IH OPTUM 270 CVT (35.204.032) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

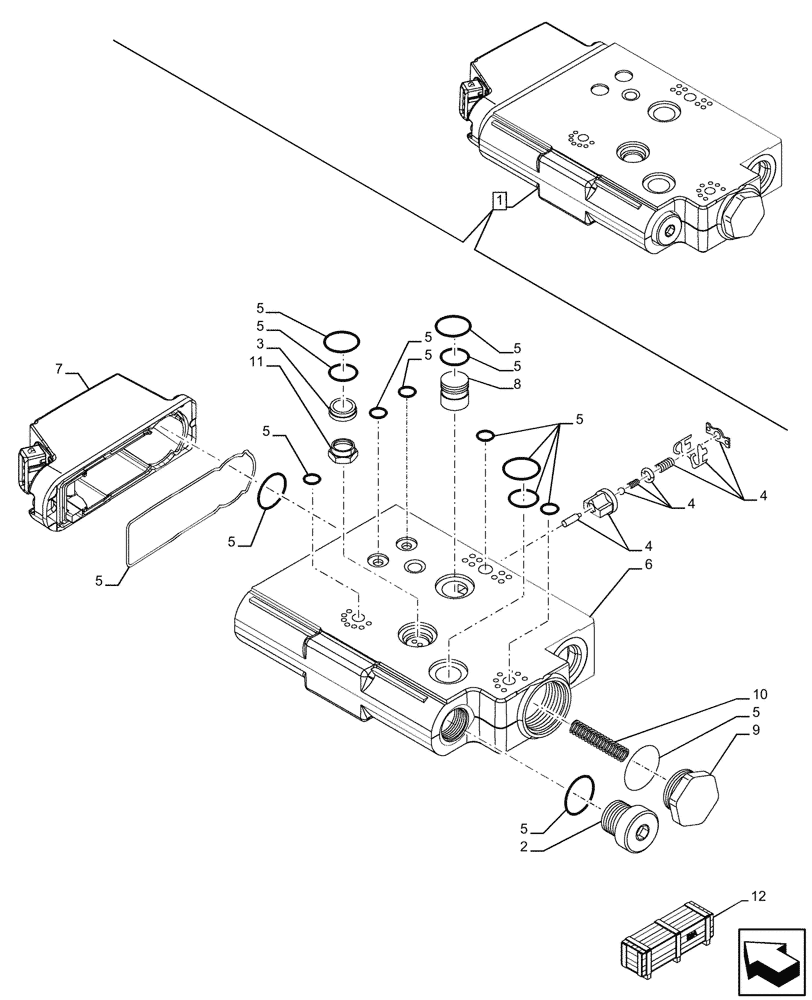

Схема запчастей Case IH OPTUM 270 CVT - (35.204.032) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
5
5
9
5
4
5
5
5
7
3
5
12
5
1
5
4
5
6
5
5
2
8
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84467081

HYDRAULIC VALVE

ASSY, SB23-LS EHS1, Incl 2 - 11

1шт.

1

84467081R

REMAN-HYD VALVE

Reman ASSY, SB23-LS EHS1, Incl 2 - 11

1шт.

1

84467081C

CORE-VALVE HYD

Core Return Number

1шт.

2

47554943

PLUG

2шт.

3

84279974

VALVE POPPET

1шт.

4

47554915

SPRING KIT

1шт.

5

47554912

SEAL KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

10

47893394

COMPRESSION SPRING

1шт.

11

47893379

VALVE

1шт.

12

731004014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 1 Valve, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
