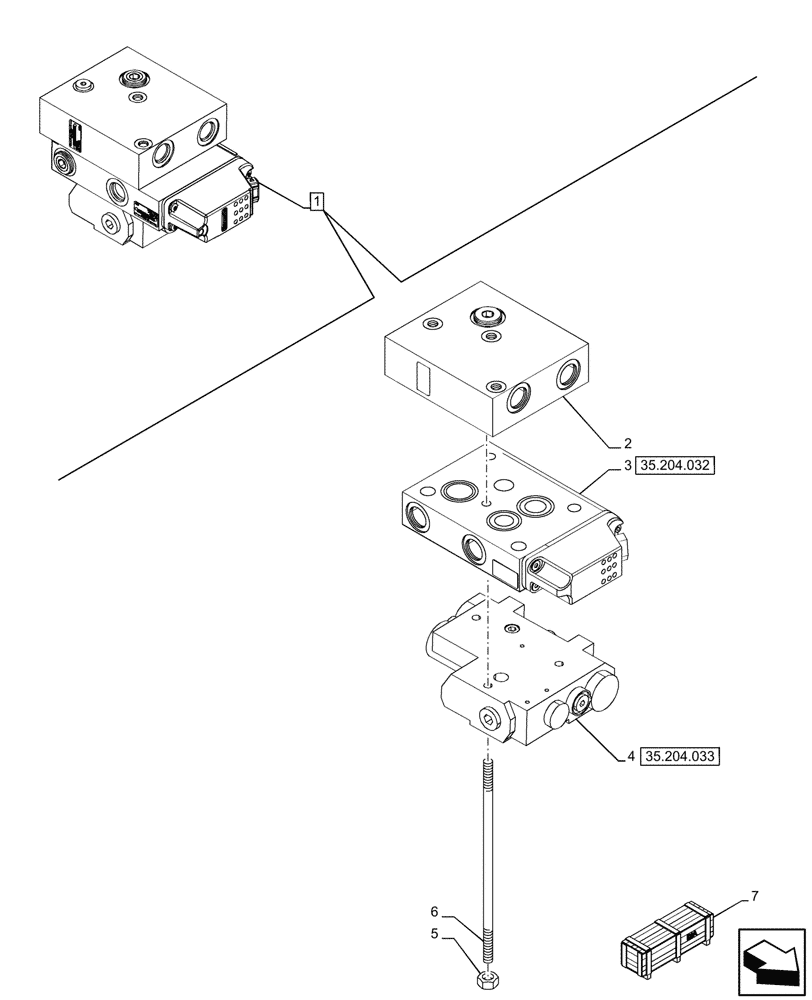

Запчасти Case IH OPTUM 270 CVT (35.204.031) - VAR - 758064 - 1 MID-MOUNT CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47467814

CONTROL VALVE

ASSY, Hydraulic, EMMV 1XEHS1, Incl 2 - 6

1шт.

2

84381621

VALVE SECTION

Inlet Plate for Mid Mount

1шт.

3

84467081

HYDRAULIC VALVE

SB23-LS EHS1, ASSY

1шт.

3

84467081R

REMAN-HYD VALVE

Reman SB23-LS EHS1, ASSY

1шт.

3

84467081C

CORE-VALVE HYD

Core Return Number

1шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

47467931

THREADED TIE-ROD,M8

131mm L

3шт.

6

16100821

NUT,M8, Cl 10

3шт.

7

731004014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 1 Valve, incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
