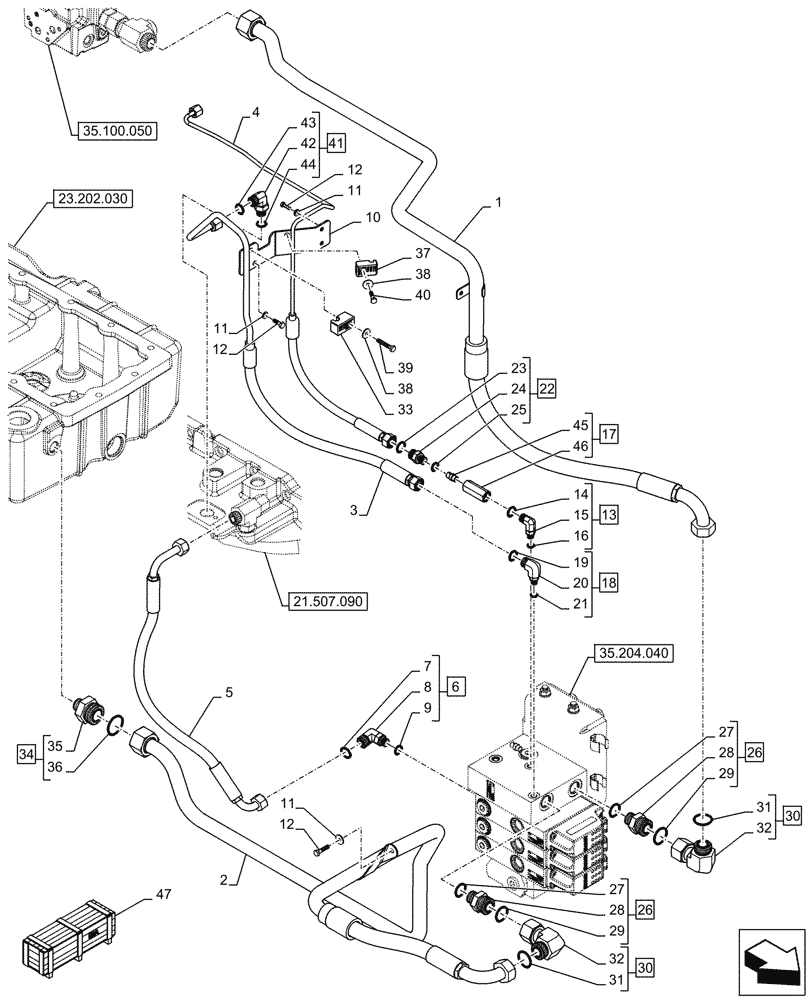

Запчасти Case IH OPTUM 270 CVT (35.204.010[01]) - VAR - 758064, 758066 - MID-MOUNT CONTROL VALVE, PIPE, LINE - END YR 16-MAR-2016 (35) - HYDRAULIC SYSTEMS

1

47723090

PIPE

MMV Supply

1шт.

2

47725802

PIPE

MMV Return

1шт.

3

47881996

PIPE

1шт.

4

47718977

PIPE

MMV LS

1шт.

5

47725875

PIPE

MMV Servo Supply

1шт.

6

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

47797343

BRACKET

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

13

47541009

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 14 - 16

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

16

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

17

47398420

CHECK VALVE

ASSY, Incl 45, 46

1шт.

18

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

ASSY, Incl 19 - 21

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

21

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

22

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 23 - 25

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 27 - 29

2шт.

27

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

28

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

2шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

30

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

ASSY, Incl 31, 32

2шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

32

NSS

NOT SOLD SEPARAT

Elbow, Incl in 30

2шт.

33

84368933

BRACKET

1шт.

34

86639050

HYD CONNECTOR,1-7/16" - 12 ORFS x M22 x 1.5 ORB

ASSY, Incl 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Connector, Incl in 34

1шт.

36

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

37

47517275

CLAMP BRACKET

1шт.

38

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

39

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

40

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

41

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 42 - 44

1шт.

42

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

NSS

NOT SOLD SEPARAT

Elbow, Incl in 41

1шт.

44

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

45

47398422

CHECK VALVE

1шт.

46

47398421

HYD CONNECTOR,9/16"-18 x M12 x 1.5

1шт.

47

731004014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 1 Valve, Incl 1 - 46

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

47

731008014

DIA KIT, TRACTOR

Elec. Mid Mount Kit 3 Valves, Incl 1 - 46

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
