(35.162.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, LIFT CYLINDER

Запчасти Case IH OPTUM 270 CVT (35.162.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

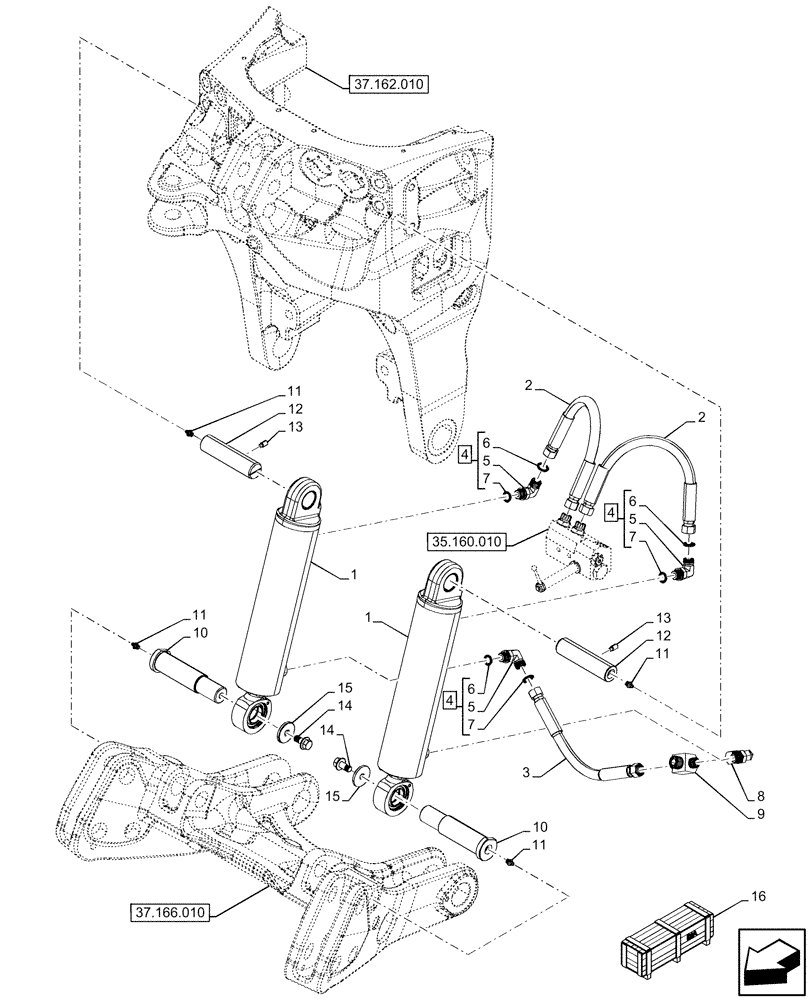

Схема запчастей Case IH OPTUM 270 CVT - (35.162.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
35.160.010
7
2
13
4
5
13
11
1
6
1
15
12
6
4
9
11
5
15
2
14
10
14
4
7
11
12
5
3
7
11
6
8
10
16
37.166.010
37.162.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47866096

LIFT CYLINDER

Lift Cylinder

2шт.

2

47590335

HYDRAULIC HOSE,9.5mm ID x 440mm L

from Hydraulic Valve to Lift Cylinder

2шт.

3

47807142

HOSE,9.5mm ID x 340mm L

Lift Cylinders Connection

1шт.

4

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

3шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

3шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

8

47795291

90 ELBOW,M18 x 1.5 x 41mm

1шт.

9

47807350

TEE,13/16"-16 UNS

1шт.

10

47627739

PIN,50mm OD x 178mm L

2шт.

11

87588865

FITTING,M6 x 1 x 12mm L

4шт.

12

47628668

PIN,35mm OD x 140mm L

2шт.

13

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

14

47455718

SCREW,Hex, M12 x 1.75 x 25mm L, Cl 8.8

2шт.

15

47636212

WASHER,12.5mm ID x 45mm OD x 5mm Thk

2шт.

16

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
