(35.160.040) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS, LINES

Запчасти Case IH OPTUM 270 CVT (35.160.040) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS, LINES (35) - HYDRAULIC SYSTEMS

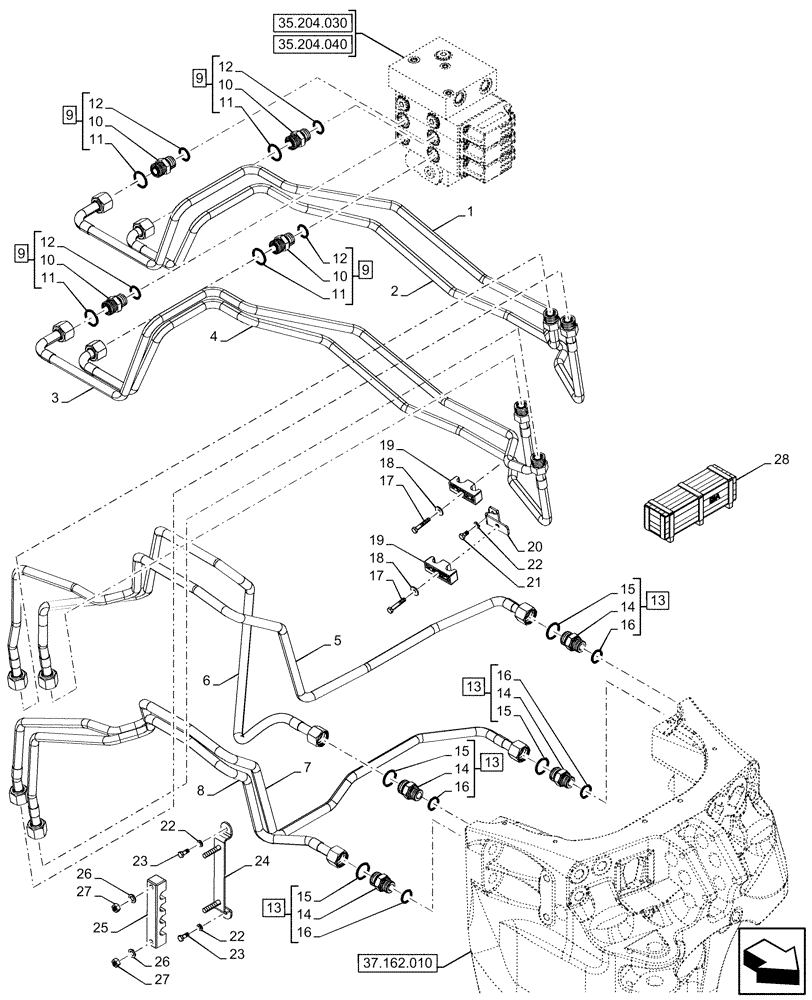

Схема запчастей Case IH OPTUM 270 CVT - (35.160.040) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS, LINES (35) - HYDRAULIC SYSTEMS
35.204.040
22
11
10
27
7
12
28
14
5
20
10
2
17
25
11
23
15
19
24
3
10
13
26
16
14
16
17
12
6
18
16
9
1
11
10
22
13
15
18
12
9
9
19
13
4
27
15
13
14
8
23
14
22
11
15
12
21
16
9
26
37.162.010
35.204.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725701

PIPE

Front Coupler Lower

1шт.

2

47725699

PIPE

Front Coupler Raise

1шт.

3

47725705

PIPE

Front Coupler Lower

1шт.

4

47725703

PIPE

Front Coupler Raise

1шт.

5

47829481

PIPE

Front Coupler Lower

1шт.

6

47829479

PIPE

Front Coupler Lower

1шт.

7

47829477

PIPE

Front Coupler Raise

1шт.

8

47719593

PIPE

Front Coupler Raise

1шт.

9

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 12 (Qty 1)

4шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

4шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

13

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 14 (Qty 1), 15 (Qty 1), 16 (Qty 1)

4шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

4шт.

15

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

16

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

4шт.

17

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

18

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

19

87571442

BRACKET

2шт.

20

47645137

BRACKET

1шт.

21

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

22

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

23

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

24

47647343

BRACKET

1шт.

25

47647347

CLAMP,24.5mm H x 25mm Thk x 139mm L

1шт.

26

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

9706690

NUT,M8 x 1.25, Cl 8

2шт.

28

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 27

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

28

718198014

DIA KIT, TRACTOR

2 Front Coupler Kit, Incl 1 - 27

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
