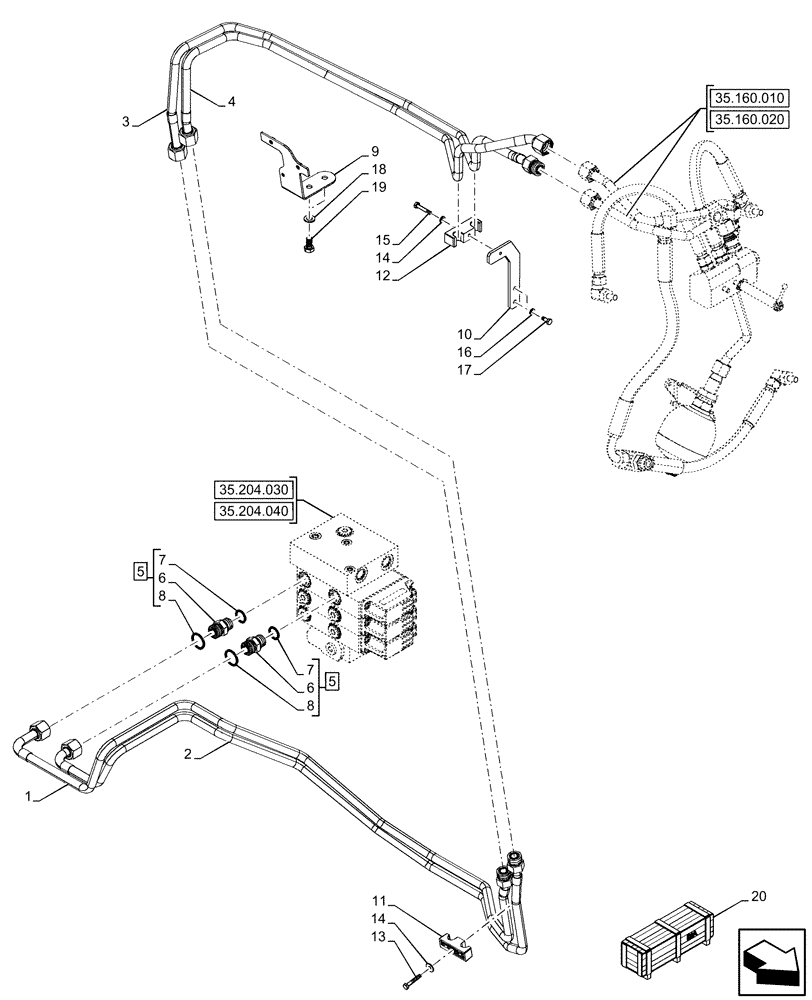

Запчасти Case IH OPTUM 270 CVT (35.160.030) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, HPL, LINES (35) - HYDRAULIC SYSTEMS

1

47830336

PIPE

Front HPL Lower

1шт.

2

47830334

PIPE

Front HPL Raise

1шт.

3

47829465

PIPE

Front HPL Lower

1шт.

4

47829463

PIPE

Front HPL Raise

1шт.

5

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

47645138

BRACKET

1шт.

10

47625086

BRACKET

1шт.

11

87571442

BRACKET

1шт.

12

84309294

FIXING PLATE

1шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

14

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

15

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

1шт.

16

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

17

10902280

BOLT,Hex, M6 x 16mm

2шт.

18

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

19

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

20

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
