(35.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ACCUMULATOR

Запчасти Case IH OPTUM 270 CVT (35.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

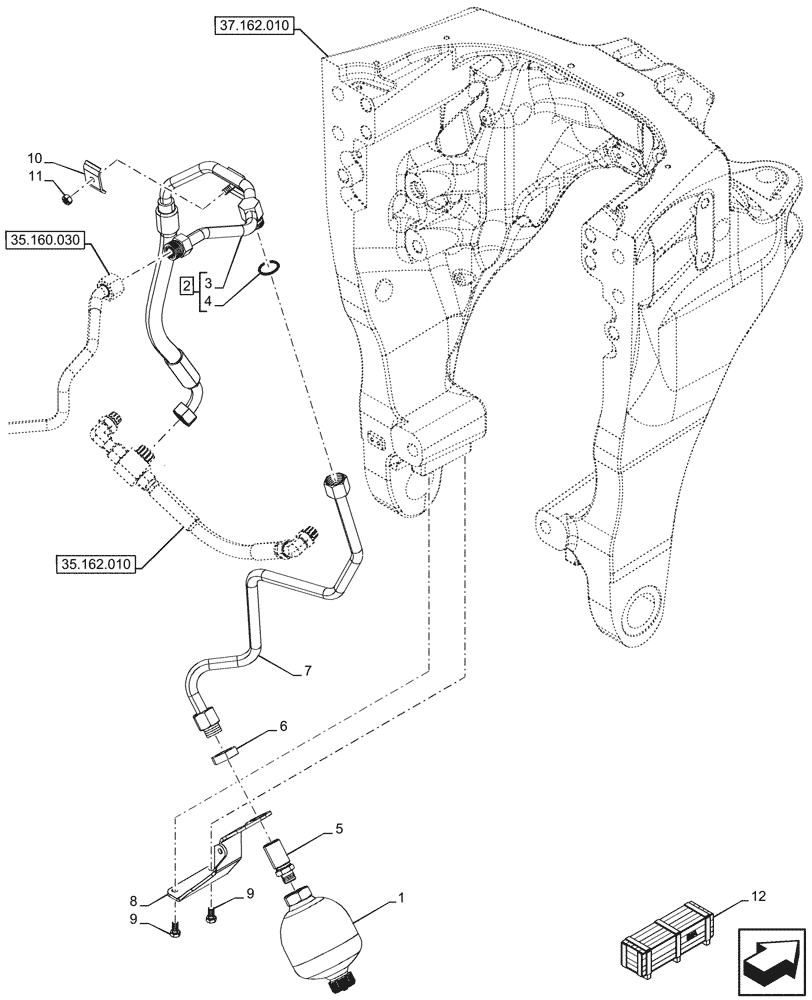

Схема запчастей Case IH OPTUM 270 CVT - (35.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ACCUMULATOR (35) - HYDRAULIC SYSTEMS
35.160.030
6
9
3
11
9
1
4
8
5
12
10
2
7
37.162.010
35.162.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84290006

ACCUMULATOR,210 Bar, 0.50L

210 bar

1шт.

2

47769500

PIPE

Feed Raise FHPL, ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 2

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

47645373

FITTING,M18 x 1.5 x 62mm L

1шт.

6

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

7

47807426

PIPE

from Feed Raise FHPL to Accumulator

1шт.

8

47643113

BRACKET

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

47057074

CLAMP,48.6mm x 30mm

1шт.

11

16102111

NUT,M8 x 1.25, Cl 8, LH

1шт.

12

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
