(35.124.100) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS

Запчасти Case IH OPTUM 270 CVT (35.124.100) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS (35) - HYDRAULIC SYSTEMS

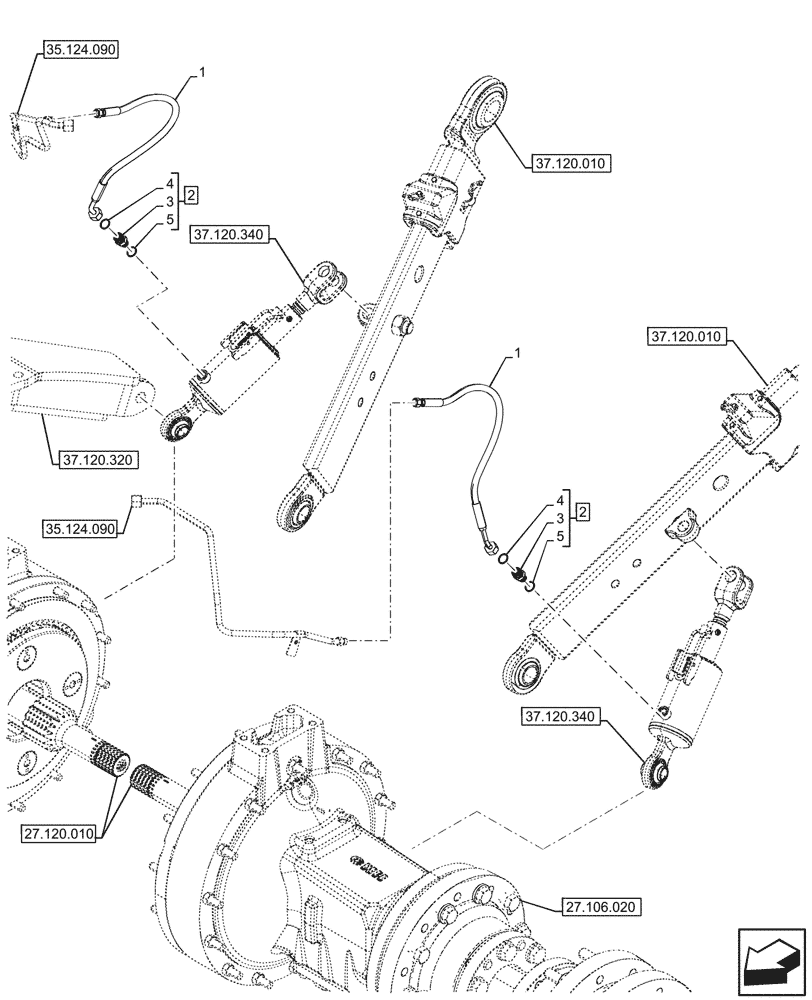

Схема запчастей Case IH OPTUM 270 CVT - (35.124.100) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS (35) - HYDRAULIC SYSTEMS
27.120.010
2
3
4
4
1
3
5
5
2
1
35.124.090
35.124.090
37.120.010
37.120.010
37.120.340
37.120.340
27.106.020
37.120.320
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47854066

HOSE,6.3mm ID x 645mm L

6.3mm ID x 645mm L

2шт.

2

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

4

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 5
