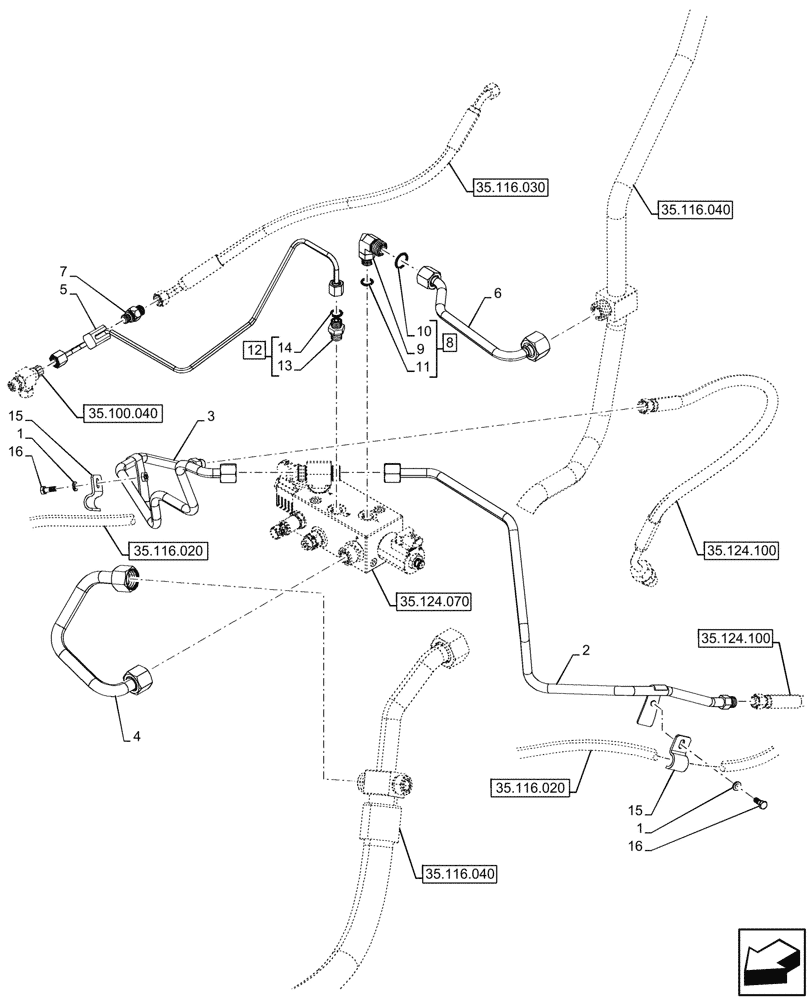

Запчасти Case IH OPTUM 270 CVT (35.124.090) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS (35) - HYDRAULIC SYSTEMS

1

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

2

47846661

PIPE

RH, Stabilizer Cylinder

1шт.

3

47846659

PIPE

LH, Stabilizer Cylinder

1шт.

4

47854067

PIPE

Stabilizer Valve Supply

1шт.

5

47854692

PIPE

Stabilizer LS

1шт.

6

47859356

PIPE

Stabilizer Valve Discharge

1шт.

7

87551023

CHECK VALVE

1шт.

8

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

5178447

BRACKET

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.
