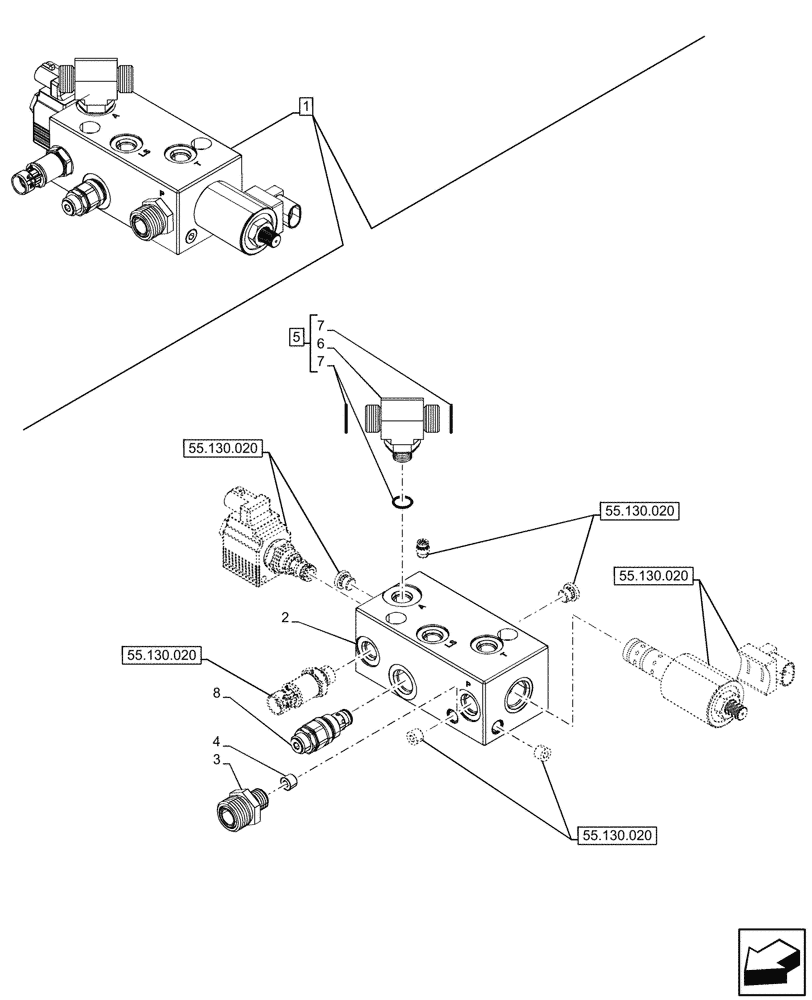

Запчасти Case IH OPTUM 270 CVT (35.124.080) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47843660

HYDRAULIC VALVE

ASSY, Stabilizer, Incl 2 - 8

1шт.

See also Solenoid Valve Components in Figure 55.130.020

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47874300

FITTING,M10 x 1

1шт.

4

47874283

ORIFICE,M10 x 1 x 8mm L

1шт.

5

87016911

TEE,13/16"-16 ORFS x M14 x 1.5 ORB Br

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

47897627

VALVE PRESSURE RELIE

1шт.
