(35.124.070) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE

Запчасти Case IH OPTUM 270 CVT (35.124.070) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE (35) - HYDRAULIC SYSTEMS

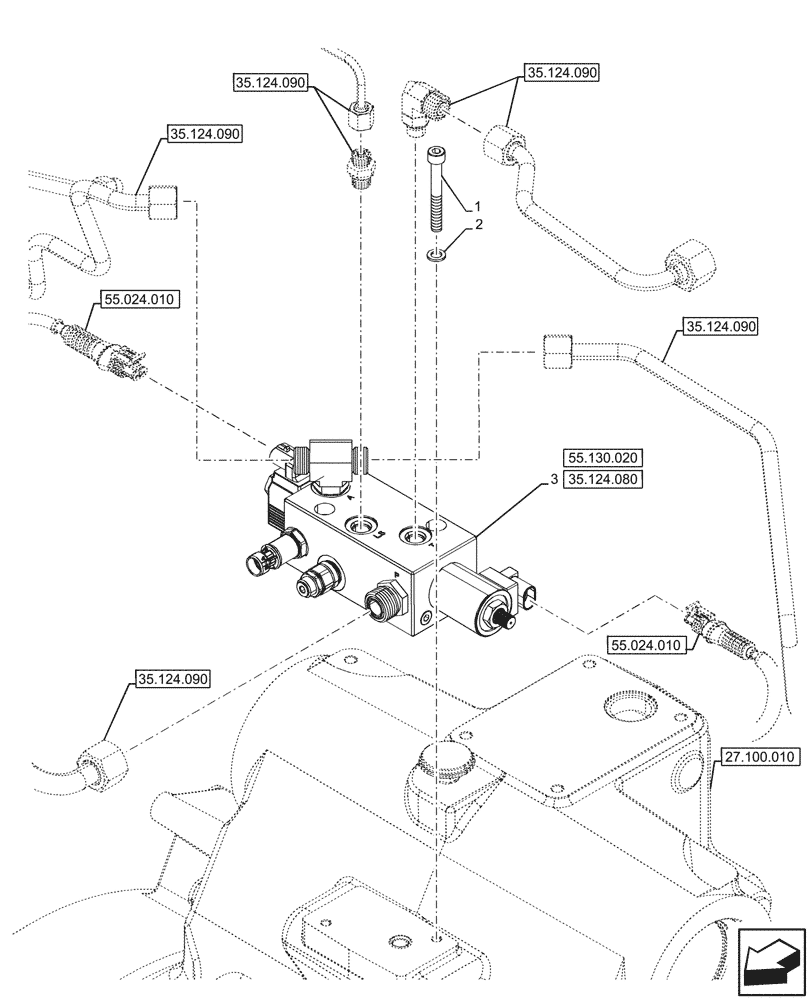

Схема запчастей Case IH OPTUM 270 CVT - (35.124.070) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE (35) - HYDRAULIC SYSTEMS
55.024.010
1
2
3
35.124.080
55.130.020
35.124.090
35.124.090
35.124.090
35.124.090
35.124.090
27.100.010
55.024.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

2шт.

2

14499404

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

3

47843660

HYDRAULIC VALVE

ASSY

1шт.

Выбрано товаров: 3
