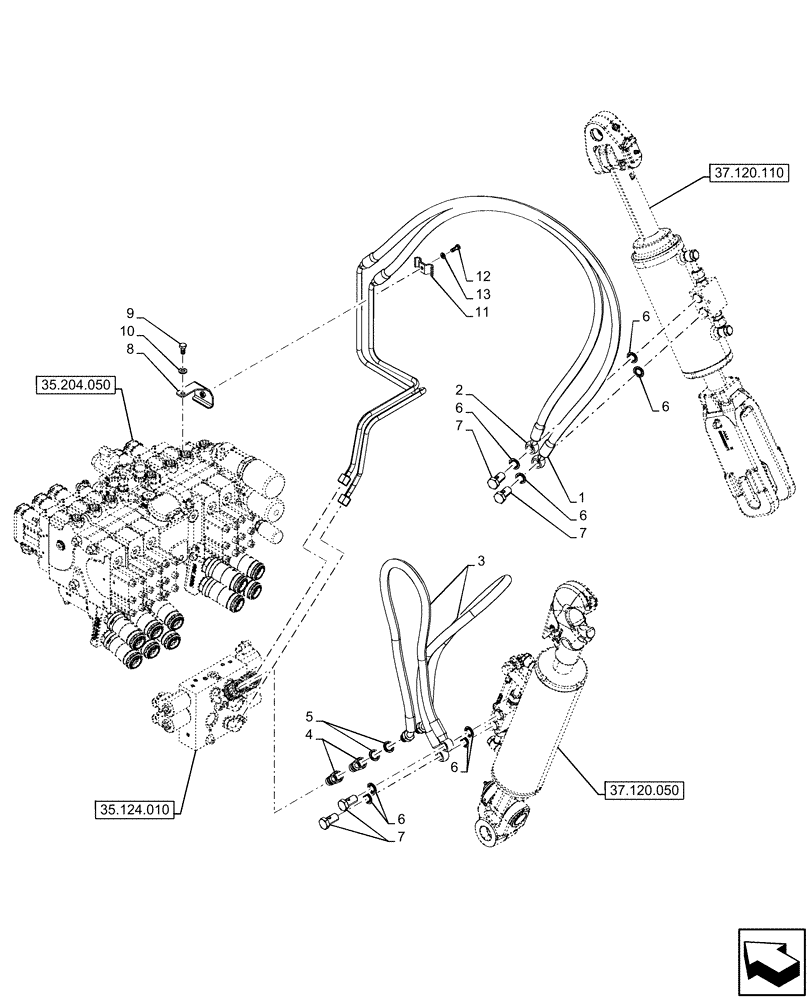

Запчасти Case IH OPTUM 270 CVT (35.124.060) - VAR - 758762, 758766 - REAR, 3 POINT HITCH, CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47904105

HYD TUBE

from Rear 3 Point Hitch Control Valve to Hydraulic Tie Rod, Retract

1шт.

2

47904107

HYD TUBE

from Rear 3 Point Hitch Control Valve to Hydraulic Tie Rod, Extend

1шт.

3

47725138

HOSE,8mm ID x 950mm L mm

8mm ID x 950mm L, from Rear 3 Point Hitch Control Valve to Hydraulic Upper Link

2шт.

4

47123021

HALF-COUPLING

2шт.

5

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

2шт.

6

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

8шт.

7

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

4шт.

8

47904115

BRACKET

1шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

4999554

CLAMP,2 Hoses

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

13

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.
