(35.124.040) - VAR - 758761, 758765 - REAR, 3 POINT HITCH, TOP LINK, CYLINDER, LINE

Запчасти Case IH OPTUM 270 CVT (35.124.040) - VAR - 758761, 758765 - REAR, 3 POINT HITCH, TOP LINK, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

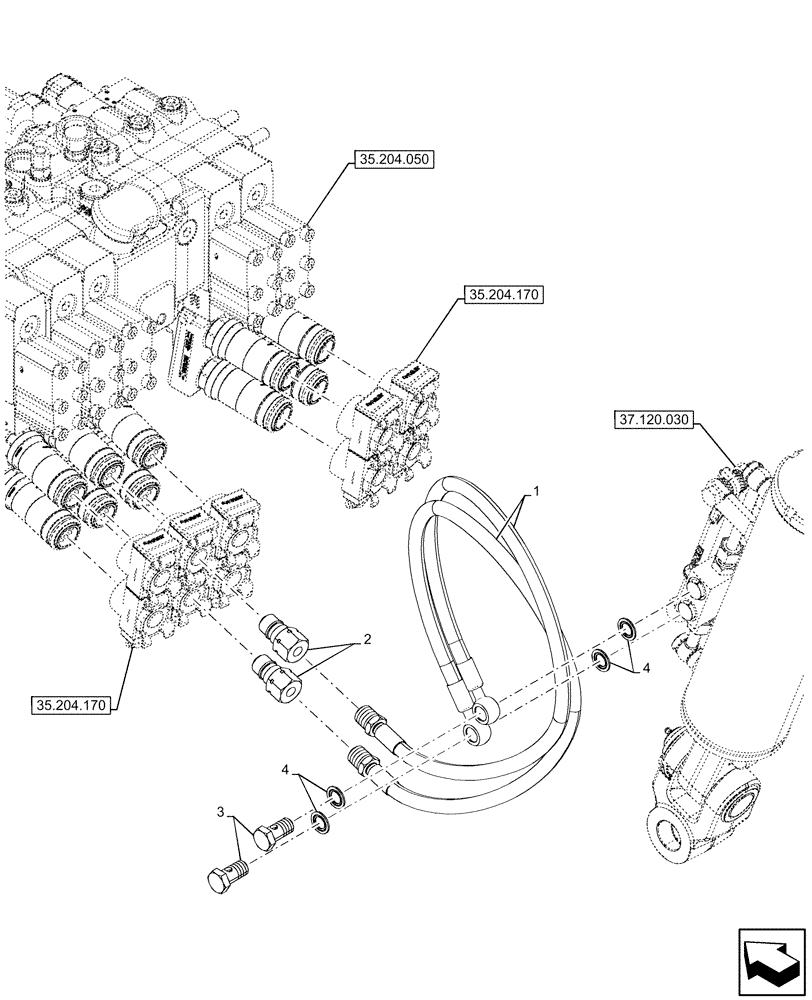

Схема запчастей Case IH OPTUM 270 CVT - (35.124.040) - VAR - 758761, 758765 - REAR, 3 POINT HITCH, TOP LINK, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
37.120.030
1
3
2
4
4
35.204.170
35.204.170
35.204.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47135530

HOSE,950mm L

950mm L, from Remote Control Valve to Top Link

1шт.

2

5163927

QUICK MALE COUPLING,51.3mm L, 1/2" NPTF

1шт.

3

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

1шт.

4

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 4
