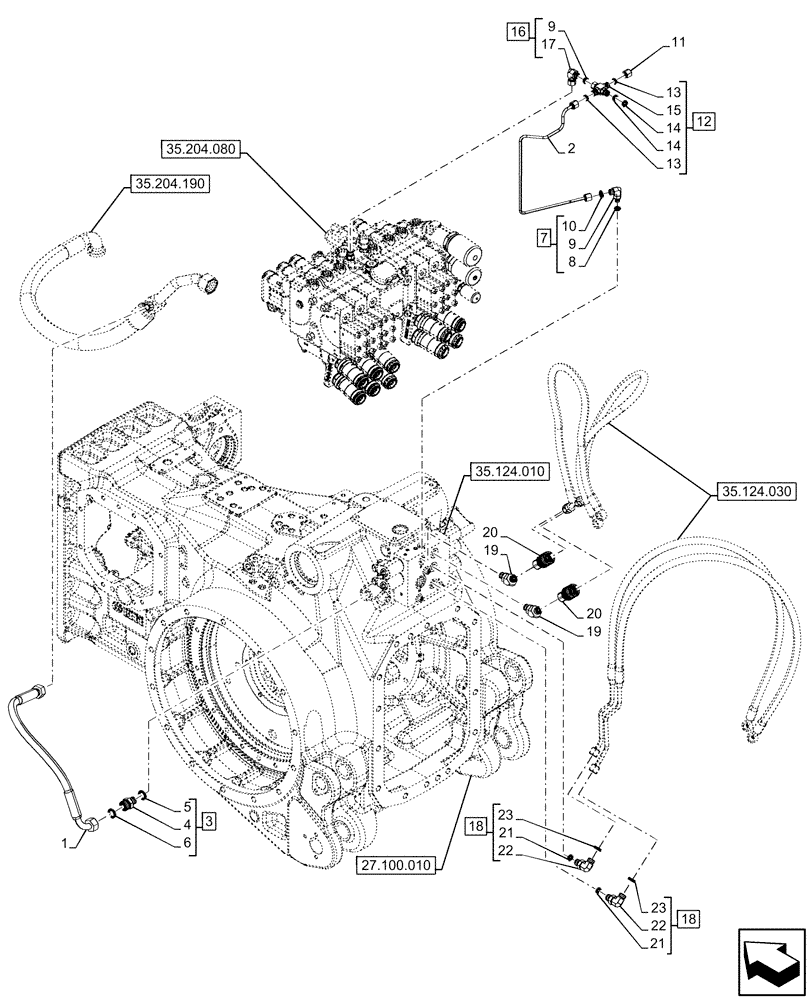

Запчасти Case IH OPTUM 270 CVT (35.124.020) - VAR - 758762, 758766 - REAR, 3 POINT HITCH, CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

47601833

HOSE,12.5mm ID x 535mm

12.5mm ID x 535mm, Diverter Supply Hose

1шт.

2

47725016

PIPE

Diverter LS, from Rear 3 Point Hitch Control Valve to Remote Control Valve Manifold

1шт.

3

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 8, 9 (Qty 1), 10

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

87668376

CAP,9/16"-18 Inch THD

1шт.

12

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 13 - 15

1шт.

13

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 12

1шт.

16

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 9 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 21(Qty 1), 22 (Qty 1), 23 (Qty 1)

2шт.

19

84346907

ELBOW,Hex, M16 x 1.5 x 33.5mm

2шт.

20

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

2шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

2шт.

23

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.
