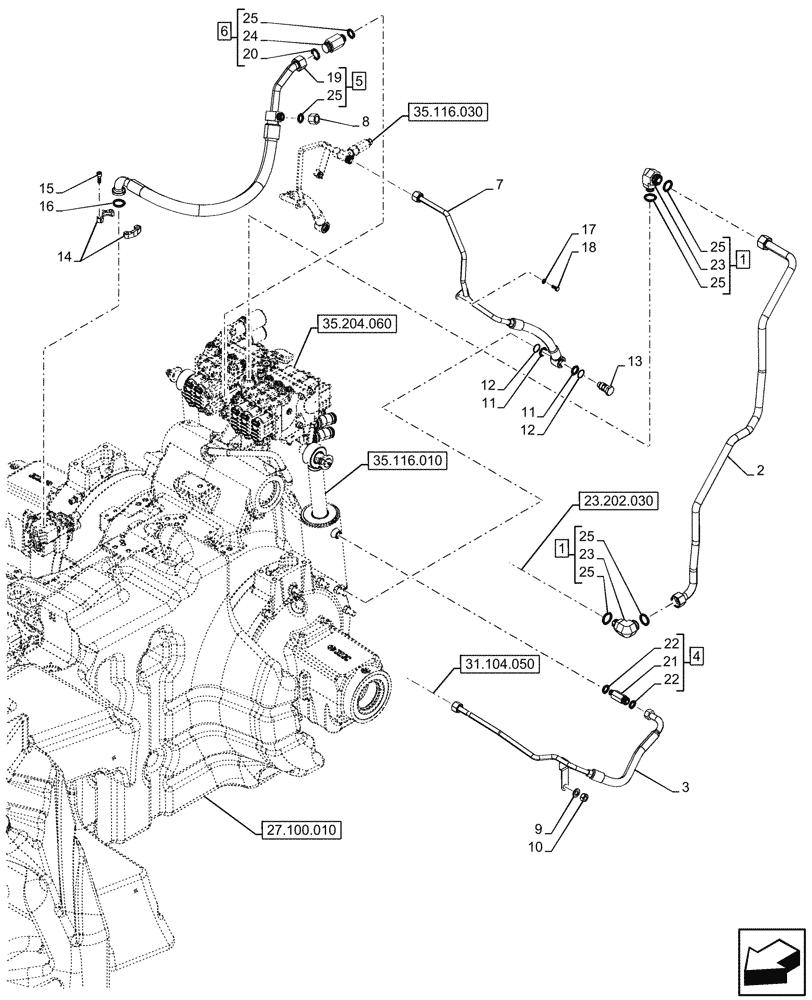

Запчасти Case IH OPTUM 270 CVT (35.116.040) - VAR - 759042 - HYDRAULIC LIFT, PIPE, W/ HYDRAULIC STABILIZERS (35) - HYDRAULIC SYSTEMS

1

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 23 (Qty 1), 25 (Qty 2)

2шт.

2

47861033

PIPE

1шт.

3

47769964

PIPE

LH

1шт.

4

86638108

HYD CONNECTOR,M18 x 1.5 x 79.5mm L

ASSY, Incl 21, 22 (Qty 2)

1шт.

5

47854678

PIPE

ASSY, Incl 19, 25 (Qty 1)

1шт.

6

47842440

FITTING,M27 x 2 x 86mm L

ASSY, Incl 20, 24, 25 (Qty 1)

1шт.

7

47724817

PIPE

LH

1шт.

8

9840576

CAP,1" - 14 ORFS

1шт.

9

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

10

12164124

NUT,M16 x 1.5, Cl 8

1шт.

11

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

2шт.

12

9672549

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

13

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

1шт.

14

70921116

HALF-FLANGE

2шт.

15

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

16

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

20

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

22

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.
