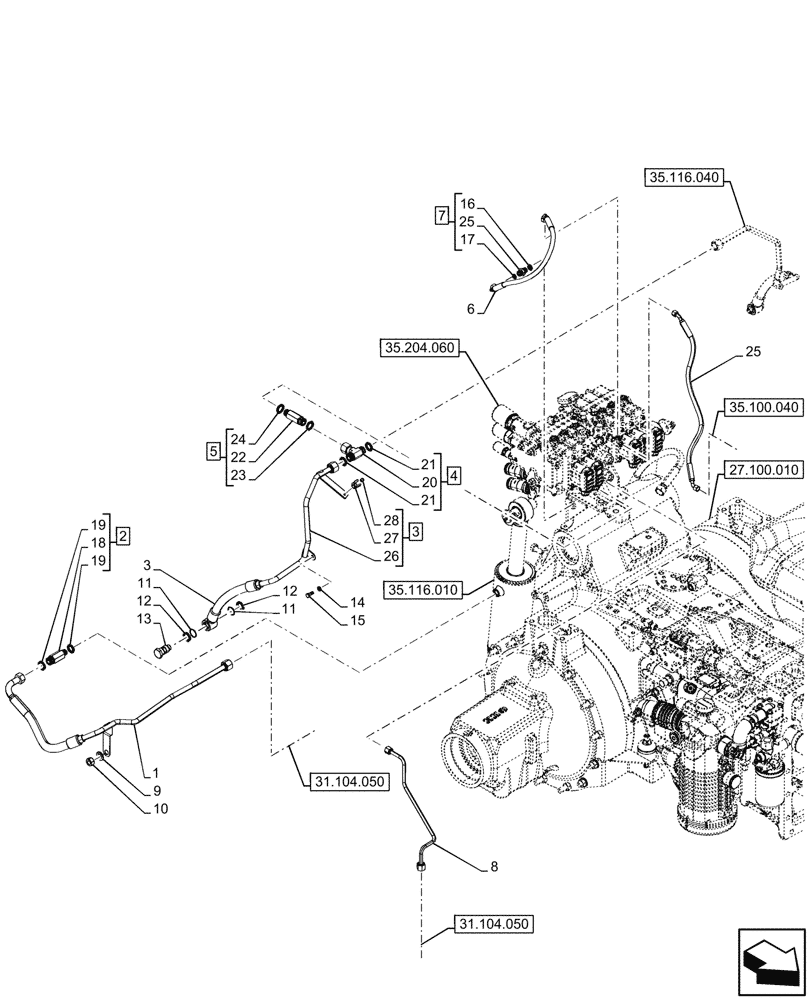

Запчасти Case IH OPTUM 270 CVT (35.116.030) - VAR - 759042 - HYDRAULIC LIFT, PIPE, W/ HYDRAULIC STABILIZERS (35) - HYDRAULIC SYSTEMS

1

47769966

PIPE

RH

1шт.

2

86638108

HYD CONNECTOR,M18 x 1.5 x 79.5mm L

ASSY, Incl 18, 19 (Qty 2)

1шт.

3

47803648

TUBE

RH, ASSY, Incl 26 - 28

1шт.

4

5197110

TEE,1"-14 UNS

ASSY, Incl 20, 21 (Qty 2)

1шт.

5

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

ASSY, Incl 22 - 24

1шт.

6

84162654

HOSE,6.3mm ID x 552mm L

1шт.

7

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

ASSY, Incl 16, 17, 25

1шт.

8

47848951

PIPE

1шт.

9

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

10

12164124

NUT,M16 x 1.5, Cl 8

1шт.

11

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

2шт.

12

9672549

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

13

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

47904955

HOSE,6.3mm ID x 570mm L

1шт.

25

NSS

NOT SOLD SEPARAT

Orifice, Incl in 7

1шт.

26

47724815

PIPE

1шт.

27

47439927

SPRING CLIP,17-20mm OD

1шт.

28

14642691

RIVET,Pop, M4.8mm OD x 10mm L

1шт.
