Запчасти Case IH OPTUM 270 CVT (35.106.020) - VAR - 758797 - VARIABLE DELIVERY HYDRAULIC PUMP, 220 L/MIN (35) - HYDRAULIC SYSTEMS

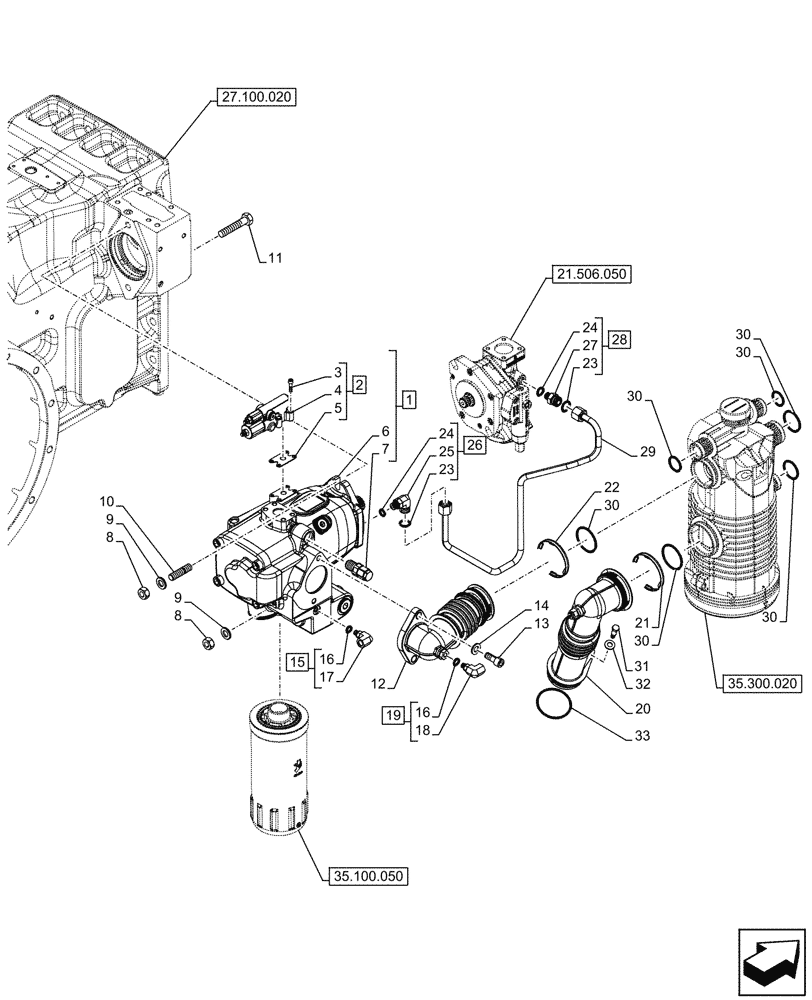

Схема запчастей Case IH OPTUM 270 CVT - (35.106.020) - VAR - 758797 - VARIABLE DELIVERY HYDRAULIC PUMP, 220 L/MIN (35) - HYDRAULIC SYSTEMS
35.300.020
29
8
11
16
16
32
23
30
23
30
18
14
7
9
10
30
8
22
28
20
21
4
31
24
33
30
25
19
24
5
9
6
15
1
17
27
30
3
26
13
30
12
2
27.100.020
35.100.050
21.506.050

Артикул

Название

Примечание

Количество

1

47507373

HYDROSTATIC PUMP

ASSY, 85 CC, Incl 2 - 7

1шт.

2

47616157

COMPENSATOR

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

4шт.

4

NSS

NOT SOLD SEPARAT

Controller, Incl in 2

1шт.

5

84209778

GASKET

1шт.

6

NSS

NOT SOLD SEPARAT

Pump, incl in 1

1шт.

7

47511121

VALVE PRESSURE RELIE

1шт.

8

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

2шт.

9

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

10

47774507

STUD,M14 x 1.5 x 35mm L, Cl 8.8

1шт.

11

15978121

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

1шт.

12

47507999

PIPE

Suction Charge Pump

1шт.

13

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

2шт.

14

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

15

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

ASSY, Incl 16 (Qty 1), 17

1шт.

16

14437585

O-RING,8.00mm ID x 1.50mm

2шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

19

47725893

HYD CONNECTOR,90 Degree Elbow Fitting

ASSY, Incl 16 (Qty 1), 18

1шт.

20

47528561

PIPE

Suction, Incl 20

1шт.

21

87381695

CIRCLIP,8mm Thk

1шт.

22

87381696

SNAP RING,8mm Thk, Ext

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

NSS

NOT SOLD SEPARAT

Elbow, Incl in 26

1шт.

26

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 23 (Qty 1), 24 (Qty 1), 25

1шт.

27

NSS

NOT SOLD SEPARAT

Elbow, Incl in 28

1шт.

28

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 23 (Qty 1), 24 (Qty 1), 27

1шт.

29

47542556

PIPE

Boost for Vane Pump

1шт.

30

87705156

SEAL KIT

1шт.

31

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

32

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

33

87421143

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Выбрано товаров: 33
