(35.100.050) - VAR - 391227, 758797 - PRIORITY VALVE, HYDRAULIC OIL FILTER

Запчасти Case IH OPTUM 270 CVT (35.100.050) - VAR - 391227, 758797 - PRIORITY VALVE, HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

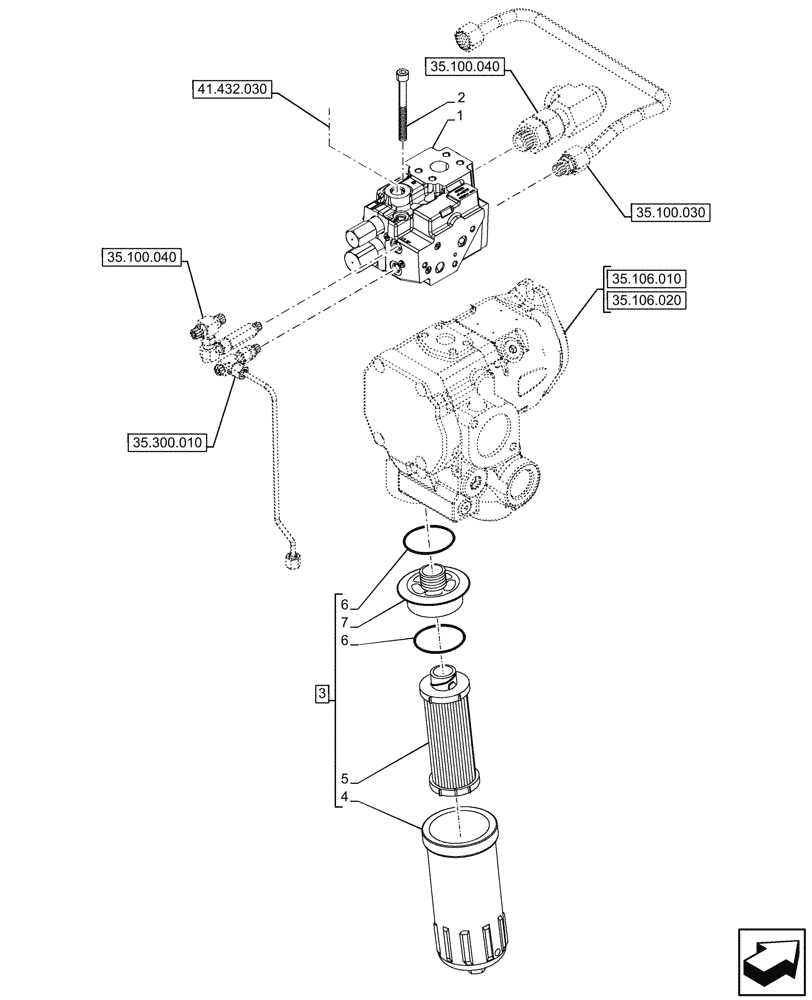

Схема запчастей Case IH OPTUM 270 CVT - (35.100.050) - VAR - 391227, 758797 - PRIORITY VALVE, HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS
35.300.010
4
3
6
1
5
6
7
2
35.106.020
41.432.030
35.100.040
35.100.040
35.100.030
35.106.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47442703

CONTROL VALVE

1шт.

2

14421431

HEX SOC SCREW,M10 x 1.5 x 100mm, Cl 10.9

4шт.

3

84341286

HYDRAULIC OIL FILTER,289.5mm L

ASSY, Incl 4 - 7

1шт.

4

84417137

FILTER BOWL

1шт.

5

84417139

ELEMENT,267.5mm L, 11 Micron

1шт.

6

84550359

O-RING,84.50mm ID x 3.00mm

2шт.

7

NSS

NOT SOLD SEPARAT

Adapter, Incl in 3

1шт.
